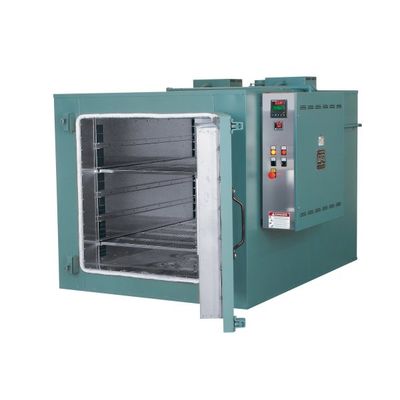

Grieve - Model AA-850 -Universal Ovens
Front-to-back horizontal air flow accommodates virtually any oven loading without restricting air passage. Work can be shelf loaded or placed directly on the optional reinforced work space bottom. Designed for baking, drying, preheating.
Most popular related searches
digital temperature controller
air intake
explosion venting
safety system
fire protection
NFPA standard
blower
stainless steel plate magnet
furnace
gaskets
Certifications
- UL Listed Control Panel
- Meets the Requirements of the Following Standards:
- NFPA 86 (Standard for Ovens and Furnaces)
- NFPA 70 (National Electric Code)
- FM (Factory Mutual)
- OSHA
- Caution:
- When processing combustible material fire protection should be considered
- Processing flammable solvents or vapors requires forced exhaust to provide safety ventilation. For more information see Class A Solvent Processing page at this website
- Adjustable manual reset excess temperature interlock to turn off heat on malfunction of main temperature controller
- Separate heating element control contactors to turn off heat on malfunction of main control contactors
- Recirculating blower air flow safety switch to turn off heat on loss of recirculated air flow
- Electrical interlock shuts off heat if power to recirculating blower is interrupted
Controls
- Digital temperature controller
- Motor control push buttons and on-off heat switch
- LED pilot lights
- 5 kA short circuit current rating (SCCR)
- 208 volt, 230 volt or 460 volt, 3-phase, 60 HZ – other input power available
- All welded construction
- Durable, electrically isolated, Incoloy tubular heating elements
- Heating elements located in heat chamber to prevent radiant heating
- High pressure carbon steel recirculating blower
- Adjustable fresh air intake and 4” diameter exhaust outlet damper
- Channel shelf supports prevent shelves tipping
- Insulated with 10 lbs per cubic foot density rockwool insulation
- 304 stainless steel interior with plated hardware
- Aluminized steel exterior with Trilite Green enamel finish
- Brushed stainless steel control panel face
- Heavy duty doors with explosion venting latches
- Silicone rubber door gasket on 550°F models
- Fiberglass door gasket with stainless steel spring insert on 700°F and 850°F models
- Slip flashing at doorway to allow inner oven to expand without affecting door sealing
- Fully assembled and factory tested for temperature uniformity
- 1 year limited warranty
- MODEL : AA-850
- MAXIMUM OPERATING TEMP : 850°F
- AIR FLOW : Forced Convection, Front to Back
- CONTROL ACCURACY : ±0.3%
- OVEN UNIFORMITY : ±8°F
- RISE TIME - ELECTRIC : 70 mins
- RISE TIME - GAS : Not Rated
- WORKS SPACE DIMENSIONS (WxDxH) : 24" x 24" x 24"
- SHELVES INCLUDED : 2
- NUMBER OF SHELVES MAX : 7
- SHELF CAPACITY : 100
- MAX LOAD CAPACITY : Not Available
- DOORS : Manual
- LOADING METHOD : Shelf
- APPROXIMATE SHIP WEIGHT : 1170 lbs
- OUTSIDE DIMENSIONS (WxDxH) : 44" x 56" x 40.5"
