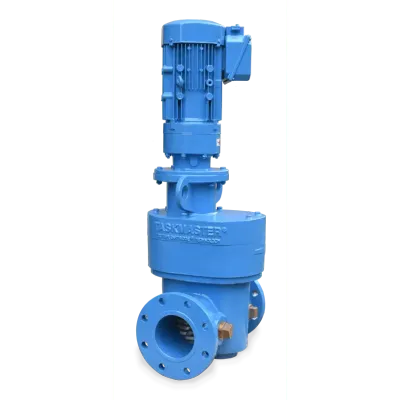

Franklin Miller Taskmaster - Model TM6500 -Grinder for Industrial Applications
The TASKMASTER TM6500 is a compact twin shaft grinder designed for high efficiency in sludge and raw sewage applications. Built with robustness in mind, it ensures excellent performance in protecting key components like pumps, valves, and centrifuges. The grinder incorporates the innovative CUTTER CARTRIDGE technology, integrating individual cutter and spacer disks into strong, single-piece construction, thereby increasing unit strength and eliminating common issues such as retightening and stack collapse. Maintenance is simplified with a true drop-in flange housing design, allowing for easy removal of the cutter assembly without disrupting the existing pipeline. Suitable for 4-inch pipe sizes as standard, the TM6500 can also be configured for 6-inch pipes and open channels, making it a versatile solution. The unit's hardened alloy steel cutters and tungsten carbide seal faces contribute to its small footprint and high performance.Most popular related searches
double shaft grinder
tungsten carbide
worm gear reducer
sewage grinder
raw sewage
sewage
wastewater grinder
open-channel grinder
centrifuge
industrial grinder
- A Choice of Cutter Profiles
- 2 HP (1.5kW) Motor
- Gear Reducer and Separate Motor
- Shaft Extension
- Mounting Frames
- 4" x 6" Flanges
- Flange Spacers
The effective and economical TASKMASTER TM6500 compact grinder is equipped with hardened, alloy steel cutters and tungsten carbide seal faces for high performance with a small footprint.

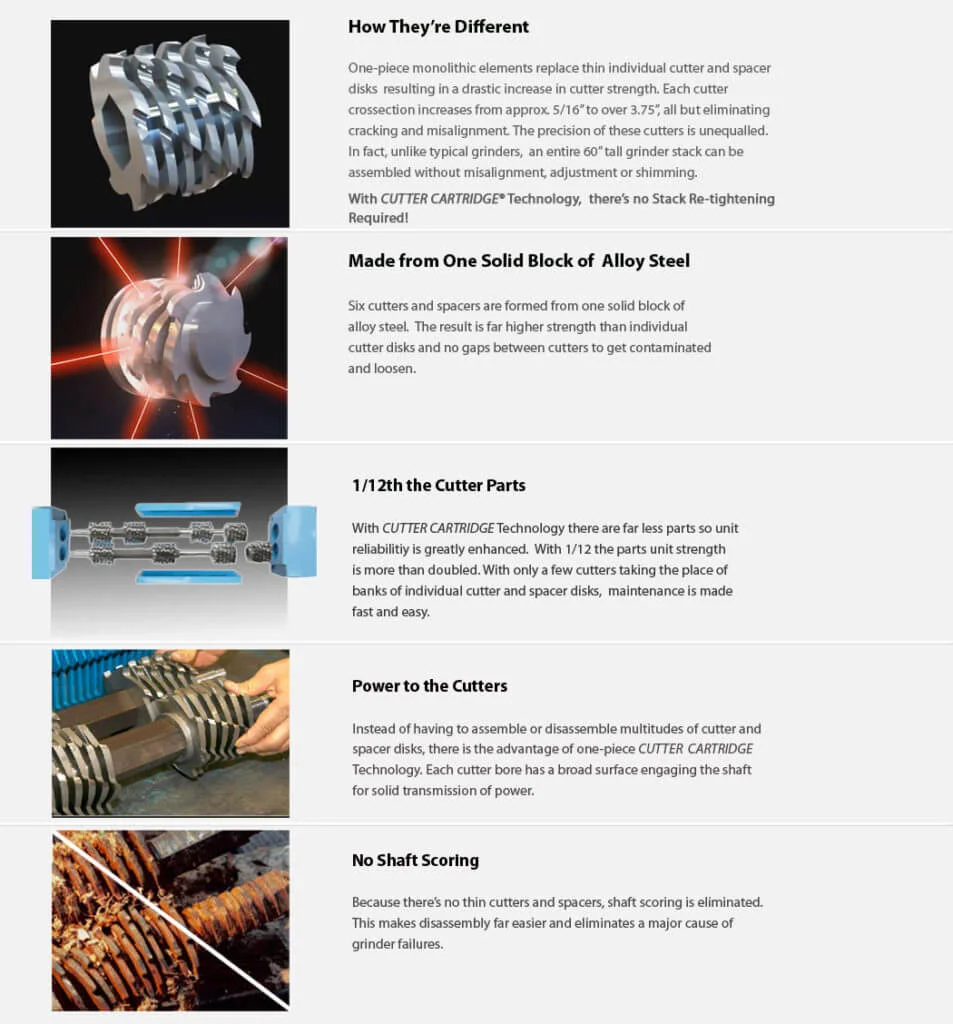

With CUTTER CARTRIDGE® technology, individual cutter and individual spacer disks are combined into high strength, one piece elements. This design eliminates weak individual cutter and spacer disks, greatly increasing unit strength. With CUTTER CARTRIDGE® technology, there’s no stack retightening required, no shaft scoring problems and no catastrophic stack collapse – problems found with other units.
The TM6500 is provided standard for 4” (100mm) pipe sizes. Other configurations can be provided for 6” (150mm) pipe sizes as well as open channels.
