Gross - Model GAZ 102 -Single Shaft Shredder

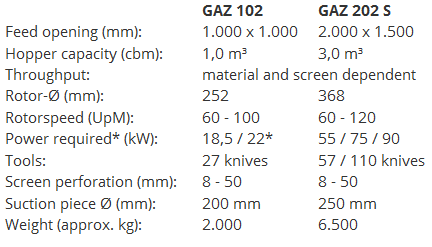

The GAZ 102 – GAZ 252 series was designed for shredding of large material quantities. The single-shaft shredders are suitable for shredding all types of woods, and hard and tough plastics. The high-performance motors from 1 x 22 kW to 2 x 90 kW with turbo coupling provide for high throughput.
- Powerful drives, with optional hydraulic clutch, 5 fan belts, robust gearbox, gear limit
- Various screens
- Turbo hydraulic with optional oil cooling
- Rotor with one row of knives for low power consumption
- Rotor with a diameter of 368 mm with two rows of knives for higher throughput
- Segmented floor
Material is fed through the hopper in front of a hydraulically operated drawer, which pushes the material load-controlled onto the turning rotor. The fed materials are shredded between the rotor knives and a fixed counterknife bar. The drawer has stripping bars that prevent material from entering between the drawer and machine housing. Material can be removed with a spiral conveyor, suction device, or a conveyor belt or chain conveyor. Once the material is shredded, the machine will automatically shut off.
- GAZ 82 S with pipe magnet
- GAZ 82 S situated on container
- GAZ 82 S with conveyor belt
- GAZ 82 S in combination with conveyor belt and briquetting press
