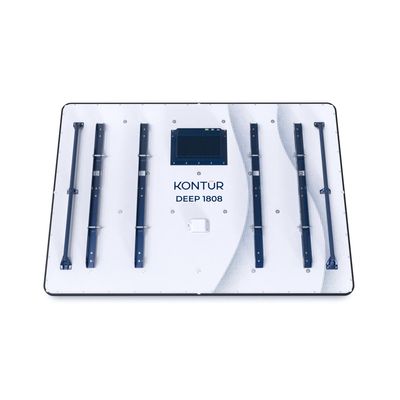

Kontur Deep - Model 1808 -Ground-Coupled Penetrating Radar (GPR) Sensor
DEEP is designed for understanding the ground at greater depths. Ideal for utility mapping, sinkholes, voids and other deeper subsurface structures. The powerful sensor is optimal for providing superior depth capabilities in challenging environments.
The DEEP sensor array is in contact with the surface which enables deeper subsurface imaging. This sensor utilizes larger antenna elements and a targeted bandwidth that is tailored for deeper survey requirements. Featuring customizable survey settings to adapt to the application. Used worldwide for utility mapping, road, rail, archeology, and aviation projects.
16.5 cm channel spacing in the antenna array combined with a 30 MHz to 1,500 MHz bandwidth ensures high-density sampling to enable detailed visualization of the subsurface. The data is presented in three dimensions, geospatially referenced and intuitively handled in our software to make evaluation as natural as possible.
DEEP is the ultimate tool for the mapping and detection of deep subsurface objects. It’s a wideband solution optimized for both depth and high resolution with a frequency range between 30-1,500 MHz, maximizing the resolution at each depth level.
- NO. OF CHANNELS: 8
- SCAN WIDTH (m): 1.32 m
- SCAN WIDTH (ft): 4.32 ft
- SIZE: 1.84 x 1.3 x 0.15 m
- WEIGHT: 68 kg
