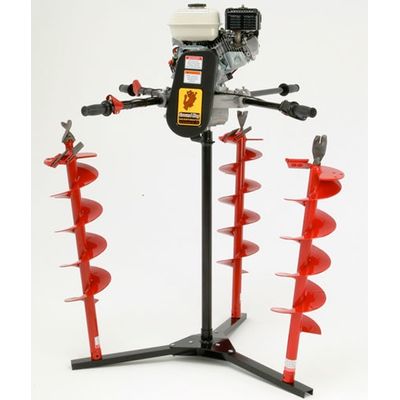

Ground Hog - Model C-71-5 -Two-Man Earth Drill
The Ground Hog C-71-5 is two-man earth drill designed to deliver years of reliable service with superior performance. It has been a proven performer for over 40 years. It’s rugged design promotes durability and requires very little maintenance.
The heart of this unit is our time-tested transmission. The transmission is an efficient worm drive design utilizing alloy steel shafts, large tapered roller bearings and our standard 7/8” square auger drive.
Aluminum castings are used throughout the C-71-5`s construction to produce a unit that is both strong and lightweight. The C-71-5 uses an air cooled centrifugal clutch and a trigger-type, return-style throttle. Both operator positions are equipped with individual stop switches and tubular steel handlebars.
The C-71-5 is available with 3 engine options; Honda, Briggs & Stratton Intek and Subaru.
- Maximum Auger Speed 160 rpm @ 3600 engine rpm (no load)
- Maximum Torque 192 ft. lbs. torque (approximate)
- Max. Auger Diameter 12 inches (31 cm)
- Weight 72 lbs. (33 kg)
- Length 40.5 inches (103 cm)
- Width 30 inches (76 cm)
- Height (Honda) 20.5 inches (52 cm)
- Ground Hog’s time tested transmission
- Low maintenance
- Easily transported
- Rapid Return ON Investment
- 7/8” square auger drive (No shear pins needed)
- Heavy wall steel handlebars
- Aluminum Castings for strength and light weight
- Centrifugal clutch with needle bearings and all metal shoes and drum
- Trigger-type return-style throttle
- Heavy Duty cog-type drive belt
- Will handle the hardest soils
- Handles up to a 12” auger
Three engine options:
Honda, Briggs & Stratton Intek and Subaru
