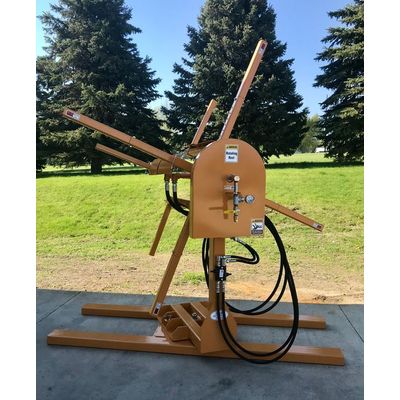

Geo-Loop - Model 500 -Grout Loop Reels
FromGeo-Loop Inc.
Fork lift pockets on both ends of framework. Durable powder coat paint finish, custom colors available upon request at additional charge.
Most popular related searches
- Spool: Large diameter spool holds 500’ of 1 ¼” loop or 1000’ of 1 ¼” pipe
- Base: Smooth 360 degree swivel base for easy access to wells
- Adjustable: Features adjustable width and diameter for many applications
- Hydraulics: Quick couplers for hydraulics, no special tools required
- Hydraulic Power: Hydraulic power in or out of the hole
- Free Wheel: Handy free wheel ability, capable for loop installation
- Water Swivel: Live water swivel to fill loop as it goes in the ground, as needed
- Pressure Test Gauge: Efficient pressure test gauge
- Operation: Operates off Geo-Loop grout pump hydraulic system or can be operated off of auxiliary hydraulic unit (example: skid loader)
- Footprint: 8` diameter spoke, min. inside diameter 25", max inside diameter 51", min. loop width 23 1/2", max loop width 31 1/2"
- Weight: Approximate weight of 970 pounds
