Geo-Loop - Model Compact YP1 - Grout ...

Geo-Loop - Model Compact YP1 -Grout Pump

FromGeo-Loop Inc.

SHARE

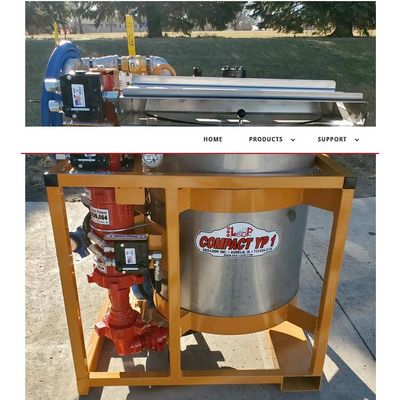

5″ bore, 8″ stroke piston pump with one chrome lined cylinder featuring hammer union construction.

Most popular related searches

stainless steel mixing tank

grout hose reel

stainless steel tank

5″ standard A-style piston rubbers
Stainless steel paddle mixer with hinged lid cover(s)
Stainless steel replaceable valve seats
Fork lift pockets on both ends of the framework
Durable powder coat paint finish, custom colors available upon request at additional charge

GPM / Pressure: Pumps 0-20 gallon per minute at pressures up to 400 PSI with 10 gallon per minute at 2,000 PSI hydraulic input
Mixing Tank: 60 gallon stainless steel mixing tank with smooth taper cone bottom
Lifting Ring: Available with lifting ring
Bag Platform: Stainless steel bag platform
Piston Pump: Piston pump covered by United States patent D526-664 S
Footprint: 36” across 27” deep and 45” tall
Weight: Approximate weight of 535 pounds

Water fill pump and rinse line
Grout hose reels
Many other Geo-Loop grouting accessories available
