Guia Lite - GPS Navigation Systems
The AG-NAV Guia Lite meets and exceeds specific requirements for GPS guidance in aerial applications.

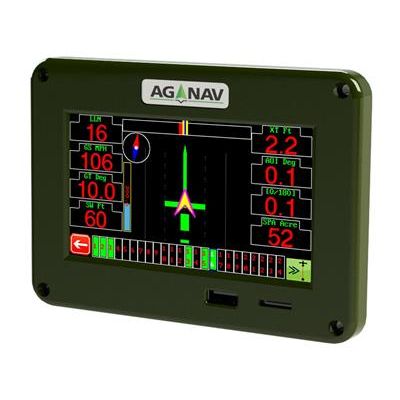

Touch Screen Interface
The Guia Lite system uses a compact, intelligent 4.3" touch screen display and 5 thumb switches for user interface. Paired together with state-of-the-art software, the Guia Lite provides accurate guidance and clear information on the lightbar and main screen.
NavViewW Data Processing Software
While using the Guia Lite, spray data can be recorded when upgrading the Guia Lite to save data in a USB flash drive, making it simple to use with the free NavViewW data processing software. This feature allows you to view sprayed data, flight maps, print out reports, and much more.
Super Bright Light Bar
Included in the AG-NAV Guia Lite package is a super bright lightbar that comes in two models for external use (top) or internal use (bottom). AG-NAV Lightbars are highly customizable, allowing the pilot to program the information he/she wants to see on the chosen lightbar.
Operating System
The Guia Lite has been designed with the know-how of the Guia Gold and Guia Silver to deliver the minimum requirements for aerial guidance. Combined with the Real Time OS, the 4.3" (11cm) touch screen displays important information and can be used to program the many patterns Guia Lite has to offer.
Built To Last
Like all AG-NAV products, the Guia Lite is manufactured to last. The system is small and compact with an intelligent touch screen display, yet carries the same durable characteristics as other navigation systems.
Affordable Cost
The AG-NAV Guia Lite is an entry-level guidance system that maintains a competitive low cost without affecting quality or usability. With the advantage of a touch screen, the Guia Lite is much easier to use and set up than other entry-level devices on the market.
- Industrial build quality
- Compact
- Light weight
- Easy Setup
- Customizable user interface
- Touch screen & remote switch support
- Free software updates
- Free technical support
- Quick Installation
- New area generation on-the-fly
- Continue spraying on existing area
- 10 waypoint guidance
Spray & controls: 1 booms, 5 thumb switches
GPS receiver: High-performance internal sensitive multi-satellite constellation. Optional external GNSS receiver
Power input: 10-30VDC with reversed polarity, load dump surge (overvoltage) protection
CPU: ARM® 32-bit Cortex®-M4 CPU with FPU
Display: 4.3” (11cm) Diagonal TFT Display, 480x272 Pixels
Touch panel: Resistive touch panel
Weight: 0.44Lbs (0.2Kg) Console
Dimensions: 4.9"(125mm) (W) x 1.5"(37mm) (L) x 3.5"(90mm) (H)
