- Unlike ultrasonic waves and non-contact microwaves, there is no radiation angle, making it suitable for installation in narrow spaces.
- Operates over wide ranges of temperature & pressure.
- Easy maintenance as no moving parts.
Aranka Instruments LLP
- Home
- Companies
- Aranka Instruments LLP
- Products
- Aranka - Guided Wave Radar Level ...

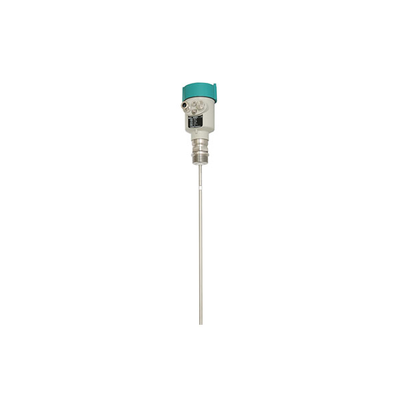

Aranka - Guided Wave Radar Level Transmitter
Guided Wave Radar (GWR) Level Transmitters use advanced Time-Domain Reflectometry (TDR) technology to deliver precise and continuous liquid level measurement. Microwave pulses are transmitted along a guided probe—available in rod, cable, or coaxial form—and reflected back when they strike the liquid surface or interface between two media.
Most popular related searches
guided wave radar level transmitter
guided wave radar
radar level transmitter
level transmitter
continuous liquid level monitoring
wave guided radar
level monitoring system
level monitoring
time domain reflectometry
liquid level monitoring
The transmitter determines the level by calculating the time difference between transmission and reflection. Because the microwaves travel through a guided path, the readings remain stable and accurate regardless of temperature, pressure, vapor, or foam variations. As a leading Guided Wave Radar Level Transmitter Manufacturer and Supplier in Ahmedabad, Aranka Instruments LLP provides durable, low-maintenance, and high-performance transmitters designed for chemical processing, industrial automation, and storage applications, ensuring consistent operation and long service life in demanding environments.
- Power Supply: 24VDC
- Measuring range: Bar type(6 meter), Cable type (20meter), Customized
- Sensor Electrode: S.S. 316
- Process connection: Thread, Flange
- Process Media: Liquid
- Frequency range: 100MHZ-1.8GHZ
- Analogue output: 4-20mA (Two-wire/Four-wire)
- Communication Output: RS 485 Modbus RTU [Optional ]
- Accuracy: ±3mm
- Max. Pressure: -0.1~2MPa
- Max. Temperature: -40~250°C
- Chemical and Petrochemical: Monitoring liquid levels in storage tanks, reactors, and pipelines.
- Oil and Gas: Measuring levels in storage tanks, pipelines, and process vessels.
- Water and Wastewater: Monitoring levels in sewage tanks, sedimentation tanks, and water reservoirs.
- Food and Beverage: Measuring levels in tanks and troughs for raw materials and processing.
- Energy Production: Monitoring levels in fuel storage tanks, cooling pools, and other process vessels.
- Pharmaceuticals: Measuring levels in storage tanks and reactors.
- Mining and Minerals: Monitoring levels of solids like cement, powder, and wood chips in storage.
- Aggressive Liquids
- High-Pressure/Temperature Environments
- Dusty and Noisy Environments.
