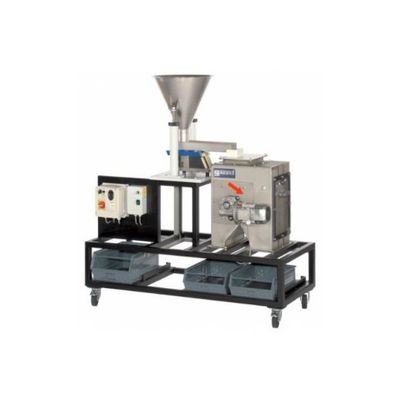

Gunt - Model CE 280 -Magnetic Separation Machine
During sorting, a solid compound is separated according to its material characteristics. Magnetic separation is a method of sorting which utilises the magnetisability of components of a solid compound. Magnetic separators are often used in coal and ore preparation. In the CE 280, the solid compound to be separated is charged into the feed hopper. A vibrating trough conveys the compound onto a rotating, non-magnetic drum. Its speed can be adjusted by way of a potentiometer. In one area of the drum there is a fixed permanent magnet. Non-magnetisable components drop into a collector tank due to gravity. Magnetisable components adhere to the drum in the area of the magnet, are carried along and drop into a different tank as soon as they are beyond the magnetic zone.
- drum-type magnetic separator for separation of magnetisable components from a solid compound
- separation by a fixed permanent magnet in an area of a rotating, non-magnetic drum
- feed hopper with vibrating trough for feed of solid compound to drum
- dosage of feed material by way of distance of hopper outlet from vibrating trough, throw and frequency of vibrating trough
- drum rotation speed adjustable by electric motor with potentiometer
- 2 steel tanks for separated fractions and 1 tank for solid compound
- feed material: sand and hexagon nuts
Feed hopper capacity: 25L
Vibrating trough
- throw: 0,2…1,5mm
- vibration frequency: 50Hz or 100Hz
Drum
- Ø 220mm
- length: 300mm
- magnetic field range: 180°
- speed: 0…30min-1
Motor
- power consumption: 250W
Max. particle size
- non-magnetic: 20mm
- magnetic: 20mm
Tanks
- 2x 15L
- 1x 20L
- sorting with a drum-type magnetic separator
- feed through vibrating trough with adjustable throw
- practical experiments on a laboratory scale
