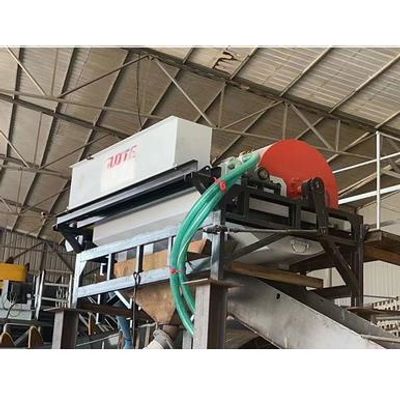

Guote - Model CTB -Wet Drum Magnetic Separator
Permanent magnet drum type magnetic separator is suitable for mine, coal preparation plant and other units. Permanent magnet drum type magnetic separator is suitable for mine, coal preparation plant and other units. For the weak magnetic field wet selection of fine particles of strong magnetic minerals, or to remove the non magnetic minerals in the mixed strong magnetic minerals. The same cylinder of the machine can be equipped with three tanks: semi-countercurrent tank (CTB), countercurrent tank (CTN) and downstream tank (CTS), which are respectively suitable for different particle sizes and different process requirements. This product uses computer optimization design, magnetic circuit reasonable and strict selection of high coercivity, high remanence of the permanent magnet, to ensure that the magnetic in a long time does not reduce, to protect the long-term interests of users, the overall structure is reliable and durable.
Application areas:
The semi-countercurrent tank is suitable for roughing and fine separation of ore with a particle size of 0.5~0mm, and for fine separation of minerals with a particle size of 0.15~0mm. Countercurrent tank is suitable for roughing and sweeping of ore with a particle size of 0.6~0mm, as well as heavy medium recovery in coal preparation industry. The downstream tank is suitable for roughing and selecting of ore with a particle size of 6~0mm.
- The magnetic field strength is customized according to the mineral properties, and there are many kinds of magnetic field strength to choose from.
- The overall structure is reliable and durable, and there are multiple tank structures to choose from.
- The magnetic circuit design is reasonable, the depth of magnetic permeability is large, cross or flip magnetic field arrangement.
When the slurry enters the magnetic field through the feed hopper, the strongly magnetic minerals are adsorbed on the surface of the drumr, the weakly magnetic and non-magnetic minerals are washed out by the water flow, and the magnetic minerals adsorbed on the surface of the drum are carried out of the magnetic field area as the drum rotates, and are flushed into the concentrate tank with flushing water to complete the sorting operation.
