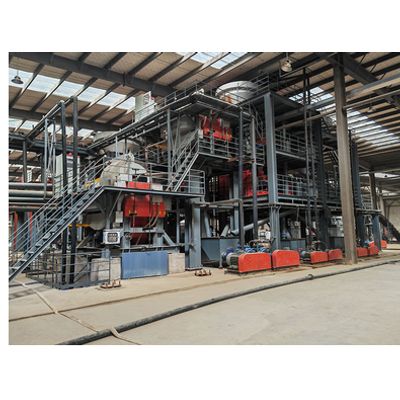

Guote - Model WHIMS -Vertical Ring High Gradient Magnetic Separator

The machine adopts rotary ring vertical rotation, recoil concentrate, and is equipped with a high-frequency vibration mechanism. It has the advantages of large enrichment ratio, high adaptability to ore particle size, concentration and grade fluctuation, good work efficiency, convenient operation and maintenance, etc.

Application areas:
This product is suitable for wet separation of -1.2mm (-200 mesh accounts for 30-100) fine red ore (hematite, limonite, siderite, etc.), manganese ore, ilmenite, wolframite and other weakly magnetic metal ores, separation of black and white tungsten, separation of wolframite and cassiterite, and also for iron removal and purification of non-metal ores such as quartz, feldspar, nepheline and kaolin.

1. Unique magnetic medium with high induced magnetic field: the magnetic medium adopts the patented product developed by the company, which can generate high gradient magnetic field, and the induced field strength can reach more than 20000 Gauss.
2. oil-water composite double cooling mode is the national special equipment vertical ring high gradient magnetic separator cooling mode, the use of oil-water heat exchange principle, with flushing mineral water quickly take away the heat generated by the coil, so that the coil temperature rise is less than 25 ° C, so that the magnetic field is more stable.
3. The vertical ring high gradient magnetic separator is equipped with fault diagnosis system and remote control system, which realizes the intelligent operation control of the equipment.
4. According to the characteristics of different materials, pulse device can be selected, which has the characteristics of good ore flushing effect, good sorting effect and water saving.

The slurry enters the ore hopper through the feeding pipe, and flows through the rotary ring along the upper magnetic field gap. The induction magnetic medium composed of high magnetic permeability stainless steel rods in the rotary ring is magnetized in the background magnetic field. The surface of the magnetic medium forms a high gradient magnetic field, and the magnetic particles in the slurry are adsorbed on the surface of the magnetic medium. With the rotation of the rotary ring, the magnetic materials are washed into the concentrate hopper, the non-magnetic particles flow into the tailings hopper along the gap under the magnetic pole and are discharged away to realize the separation of materials. The magnetic medium at the lower part of the rotating ring is immersed in the slurry liquid surface. While the slurry is injected, the stroke box installed on one side of the tailings box continuously reciprocates, causing the slurry in the sorting chamber to fluctuate up and down through the tympanic membrane. The pulsating fluid force keeps the ore particle group in a loose state during the sorting process, thus effectively removing impurities in the particle group and significantly improving the grade of concentrate.
