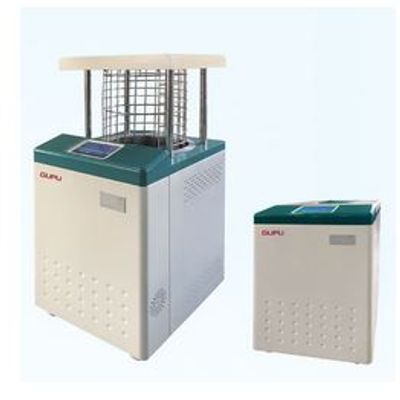

Gupu - Model GS-U -Fully Auto Elevating Pulse Vaccum Pressure Steam Sterilizer with LCD Display

• 7" touchable LCD Display, fully automatically microprocessor controlled.
• Elevating door, more convenient to place and fetch the objects from the autoclave.
• Pulse vacuum, the limit is -0.080Mpa, which ensure the sterilizing more completely.
• Fully one-key automatic from water inlet, pulse vacuum, heat, sterilizing, water outlet, exhausting to vacuum drying.
• Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
• Equipped with Germany SARTORIUS Sterile ventilation filter MIDISART 2000 0.20um, which ensure the air is sterile, preventing the contamination.
• Separated steam generator is more energy saving comparing with the normal heating, preventing the sterilizing objects from being oxidized.
• There are several programs loaded in the autoclaves for different requirement of different objects.
• With PT-TT testing port, easy to run the testing.

• Volume 60L 80L 100L 120L
• Chamber Size φ396×490mm φ396×650mm 504×404×502mm 504×404×590mm
• The height after rising 1310mm 1590mm 1475mm 1565mm

Pressure Performance

• Working Pressure 0.22Mpa
• Max. Working Pressure 0.23Mpa
• Temperature & Timming Performance
• Working Temperature 134℃
• Temperature Adjust Range 105-134℃
• Heat Average ≤±1℃
• Timer Range 0-99min
• Display and Controller
• Display LCD display of working status, touch-type keys.
• Controller Micro-computer processor controller
• Sensor PT100

Electric Supply

• Power Consumption Steam generator：3KW Steam generator：3.6KW
• Dry blanket:2.4KW/AC220V 50HZ  Dry blanket:2.4KW/AC220V 50HZ
• Power Supply AC220V 50HZ/60HZ

Material and Construction

• External Material 304 stainless steel
• Internal Material 304 stainless steel
• Basket Material and Qty 304 stainless steel baskets, 2pcs

Size

• Overall Size(mm） 686×556×913 686×556×1035 840×600×970 840×600×1060
• Transport Size(mm） 789×656×1013 786×656×1135 940×610×1000 940×610×1075
• N.W/G.W 180/210Kg 200/230Kg 270/300Kg 295/325Kg
