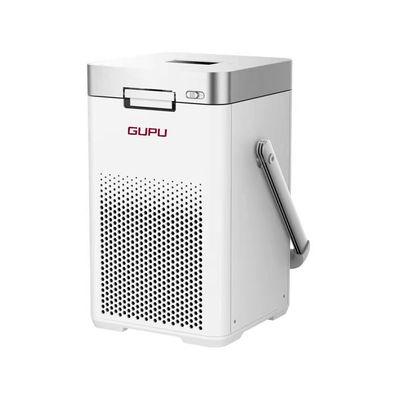

Gupu - Model GUL-150C130 -Ultra Low Temperature Freezer

• Model GUL-150C130
• Volume (L/cu.ft.) 128/14.4
• Stainless Steel Shelves Qty  (height adjustable) /
• Load of Racks 16 (5*4, 4*4)
• Load of Boxes (2inches) 288
• Max Load of Samples (2ml) 28800
• Chamber Size (mm)    500*450*578
• Outer Size (mm)    1555*956*1047
• Package Size (mm)    1637*970*1295
• Net Weight/Gross Weight (kg)    85/90
• CBM    1.3
• 20GP/40GP/40HQ    4/14/14

Performance

• Cooling Performance    -150℃
• Temperature Control Range    -40~-150℃
• Pull Down Time to -150℃ at 30℃
• Ambient Temperature    SN (10℃ to 32℃)

Control

• Controller    Microprocessor
• Display    Digital Display
• Temperature Sensor    PT100

Refrigeration

• Refrigeration System    Self-cascade System
• Compressors    Taikang/1
• Refrigerant    Efficient Mixed-gas
• Insulation Material    130mm PURF, Vacuum Insulation Panel Plus

Construction

• Outer Material    Painted Steel
• Chamber Material    Stainless Steel
• Outer Door    Foam, Sealing joint strip with magnetic force.
• Outer Door Lock    Safety door lock and password protection
• Inner Door Qty    2
• Access Port Qty & Diameter    1/25mm
• Casters    Y

Alarms

• High & Low Temperature    Y
• Extremely High Ambient    /
• Thermostat Failure    Y
• Sensor Error    Y
• Abnormal Voltage    /
• Power Failure    /
• Low Battery    /
• Condenser Clean    /
• Filter Clean    /
• Door Open    Y
• Romote Alarm    /

Electrical and Noise Level

• Power Supplier    380V/50HZ
• Heat Output (220V)    2550W
• Power Consumption    44.5
• Noise Level    52

Options

• USB Port    Y
• Chart Recorder    /
• Data Logger    Y
• Power Failure Backup Battery    /
• CO2 or LN2 Back-up    /
