Guzzler - Model GE-2600A / GE-2600B - ...

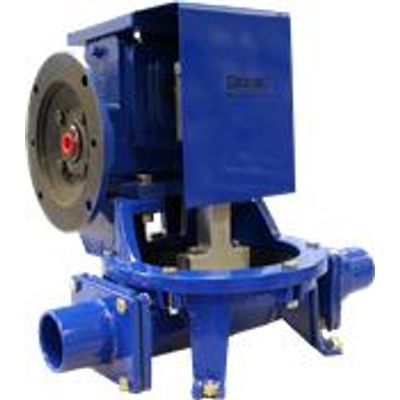

Guzzler - Model GE-2600A / GE-2600B -2800 Motorized Pump

FromThe Bosworth Company

SHARE

Motorized version of the Guzzler 2600 pump. Available in either aluminum (GE-2600A) or bronze (GE-2600B).

Most popular related searches

worm gear reducer

stainless steel plate magnet

aluminum bronze coating

Equipped with Gear Reducer & Motor-ready NEMA 56C flange
Available Gear Ratios from 15:1 to 90:1
Accommodates 1-1/4" to 2" hose
AC (115 VAC) and DC (12 VDC, 24 VDC) motors available
Capacity Range dependent on choice of motor and gear reducer
Example flow rates: 4.4 gpm @ 22 cpm to 24.0 gpm @ 120 cpm

Max Pressure Range: 10 - 13 psi / 0.69 - 0.90 bar
Lift/Head Range: 20.0 - 20.0 ft / 6.1 - 6.1 m
Capacity Range: 0.0 - 0.0 gpm / 0.0 - 0.0 lpm
Volume per stroke: 0.80 qt / 0.76 l
Max Service Temp: 190° F / 88° C

Speed Control: None
Valves: Flapper (Buna-N)
Diaphragm: Buna-N 3-Ply
Clevis Button Assembly: Stainless Steel
Motor Mounting Plate: Motor Mounting Plate
Inlet Hose Connection: 2" Smooth
Outlet Hose Connection: 2" Smooth
Motor Options: Gear Ratio: 40:1, Input HP: 0.44 | psi: 13
Pre-Pak Accessories: Not selected

Body & Ports * Epoxy-coated Aluminum (Blue), Epoxy-coated Bronze (Bronze)
Clamp Ring Aluminum or Bronze Motor Mounting Plate
Valves * Buna-N Flapper w/molded steel reinforcement plate
Diaphragm * Buna-N Double Sided Clevis/Button Assembly * Stainless Steel
Motor-ready Accommodates NEMA 56-C motors; other models equipped with 115 VAC, 12 VDC and 24 VDC motors
