H-L-Global - Mixed Reinforcing System
FromH&L Global Group
For tanks over 4m height, internally and externally reinforced system is applied to assure the strength and durability of the tank`s structure. As the internal materials, hygienic stainless steel and GRP are used, and as the external materials, anti-corrosive hot dipped galvanized steel is used.
Most popular related searches
GRP pipe
water storage
manhole cover
water storage tank
GRP tank
mixing system
dust cover
manhole
water tank
Reliable quality in strength and durability
FINETANK - GRP Sectional Tanks basically adapt the internally reinforced system, which ensures the better reliability and robustness.
As an option, externally reinforced system which has no internal reinforcements also can be applied according to project`s requirement.
As an option, externally reinforced system which has no internal reinforcements also can be applied according to project`s requirement.

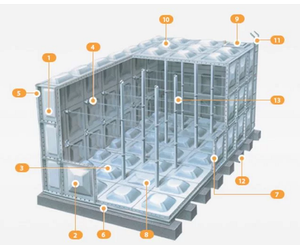

INTERNALLY REINFORCED SYSTEM
Wall panels are tightened using stainless steel tie-rods and the top panels are supported with GRP pipes inside of the tank to secure the strength and stability of the tank structure.
- Wall - Hot press molded GRP panel (1000x500mm)
- Wall - Hot press molded GRP panel (1000x1000mm)
- Bottom – Hot press molded GRP panel - Convex (1000x1000mm)
- Internal tie-rods - Stainless steel 304 or 316
- Corner frame - Hot dipped galvanized steel
- Base frame - Hot dipped galvanized steel
- Assembly bolts in size M10 / 12 / 14
- Inside : Stainless steel 304 or 316
- Outside : Galvanized steel (with or without rubber cap)
- Drain – Hot press molded GRP panel - Concave (1000x1000mm)
- Dust proof manhole cover – Hot press molded GRP panel (Ø850)
- Top cover – Hot press molded GRP panel (1000x1000mm)
- External ladder – Hot dipped galvanized steel or stainless steel
- Foundation – Concrete plinth with interval of 1m span
- Roof support – Pultruded GRP pipe
