H2B2 - Medium Scale Electrolyser

SHARE

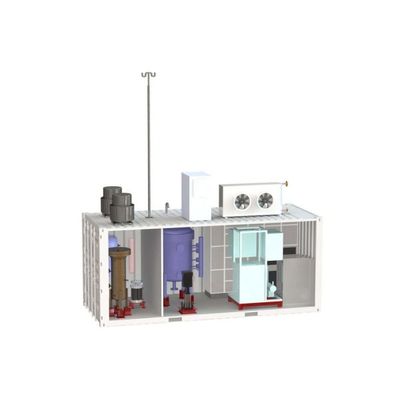

H2B2’s medium scale of electrolysers are able to supply hydrogen from 10.05 to 63.3 Nm3/h. These systems are integrated in a container. H2B2’s electrolysers are certified and developed according to European or American (depending on customer geography) codes and standards. H2B2 supplies electrolysers with CE marking and, if necessary, ETL stamp (priced separately), as well as required safety studies (HAZOP by default).

Most popular related searches
water treatment plant
demineralized water treatment
demineralized water plant
gas purification
hazardous area
demineralized water
feed water
water treatment
H2S water
electrolyser
Main characteristics
  • Electrolysis type: PEM (Proton exchange membrane, caustic free)
  • Number of cell stacks: 1
Hydrogen gas production
  • Max. nominal hydrogen flow: 10.05 Nm3/h (21.68 kg/day)
  • Hydrogen flow range: 10 -100%
  • Operating pressure: 15 – 40 barg (217-580 psig)
  • Hydrogen purity (before gas purification): > 99.9%; < 25 ppm O2; H2O saturated
  • Hydrogen purity (after gas purification): 99.999%; < 5 ppm O2; < 5 ppm H2O
Electrical requirements
  • Voltage: 3 x 400 VAC ± 10% (3Ph+N) / 3 x 480 VAC ± 10% (3Ph+N)
  • Frequency: 50 Hz ± 5% / 60 Hz ± 3%
  • Power (BoP + Stack):  53.2 kW
  • Stack consumption: 4.7 kWh/Nm3 H2
  • AC power consumption (BoP + stack): 5.3 kWh/Nm3 H2
Feed Water – Demi Water (optional Water Treatment Plant is not included)
  • Consumption: < 1 L/Nm3 H2
  • Conductivity: > 10 M?cm (< 0.1 uS/cm); TOC < 30 ppb
  • Pressure: 2-3 barg (29-43 psig)
  • Temperature: +5 ºC to + 40 ºC (+41 ºF to +104 ºF)
Control system
  • PLC: Fully automated and unattended with 7″ color touch screen
  • Communication: Modbus TCP/IP or Profinet (RJ45 port)
Environmental conditions
  • Ambient temperature range: +5 ºC to + 45 ºC (+41 ºF to +113 ºF)
  • Humidity: 0 to +95% (non-condensing)
  • Air ventilation: Available from a non-hazardous area
  • Installation area: Indoor/Outdoor
Dimensions and weight
  • Dimensions (LxWxH): 10ft container (3.0m x 2.4m x 2.9) (9.8ft x 7.9ft x 9.5ft)
  • Approx. weight: 5,000 kg (11,023 lb)
Standards & regulations
  • Compliance: CE, ISO 22734-1 / NFPA 2-2016 & NFPA 70
Other characteristics
  • Duty cycle: 100% (24/7)
  • Start-up time (from stand-by): < 1 sec
  • Cold start time: < 5 min
  • Nitrogen Supply System: For each purge, consumption is <0.1 kg at 3 barg (to be supplied by the customer)
  • Instrumentation air System: Consumption 4 Nm3/h at 10 barg (to be supplied by the customer)

Main characteristics
  • Electrolysis type: PEM (Proton exchange membrane, caustic free)
  • Number of cell stacks: 1
Hydrogen gas production
  • Max. nominal hydrogen flow: 20 Nm3/h (43 kg/day)
  • Hydrogen flow range: 10 -100%
  • Operating pressure: 15 – 40 barg (217-580 psig)
  • Hydrogen purity (before gas purification): > 99.9%; < 25 ppm O2; H2O saturated
  • Hydrogen purity (after gas purification): 99.999%; < 5 ppm O2; < 5 ppm H2O
Electrical requirements
  • Voltage: 3 x 400 VAC ± 10% (3Ph+N) / 3 x 480 VAC ± 10% (3Ph+N)
  • Frequency: 50 Hz ± 5% / 60 Hz ± 3%
  • Power (BoP + Stack):  106.6 kW
  • Stack consumption: 4.7 kWh/Nm3 H2
  • AC power consumption (BoP + stack): 5.2 kWh/Nm3 H2
Feed Water – Demi Water (optional Water Treatment Plant is not included)
  • Consumption: < 1 L/Nm3 H2
  • Conductivity: > 10 M?cm (< 0.1 uS/cm); TOC < 30 ppb
  • Pressure: 2-3 barg (29-43 psig)
  • Temperature: +5 ºC to + 40 ºC (+41 ºF to +104 ºF)
Control system
  • PLC: Fully automated and unattended with 7″ color touch screen
  • Communication: Modbus TCP/IP or Profinet (RJ45 port)
Environmental conditions
  • Ambient temperature range: +5 ºC to + 45 ºC (+41 ºF to +113 ºF)
  • Humidity: 0 to +95% (non-condensing)
  • Air ventilation: Available from a non-hazardous area
  • Installation area: Indoor/Outdoor
Dimensions and weight
  • Dimensions (LxWxH): 20 ft container (6.0m x 2.4m x 2.9m) (19.7ft x 7.9ft x 9.5ft)
  • Approx. weight: 11,000 kg (24,251 lb)
Standards & regulations
  • Compliance: CE, ISO 22734-1 / NFPA 2-2016 & NFPA 70
Other characteristics
  • Duty cycle: 100% (24/7)
  • Start-up time (from stand-by): < 1 sec
  • Cold start time: < 5 min
  • Nitrogen Supply System: For each purge, consumption is <0.2 kg at 3 barg (to be supplied by the customer)
  • Instrumentation air System: Consumption 7 Nm3/h at 10 barg (to be supplied by the customer)

Main characteristics
  • Electrolysis type: PEM (Proton exchange membrane, caustic free)
  • Number of cell stacks: 1
Hydrogen gas production
  • Max. nominal hydrogen flow: 31.7 Nm3/h (68.40 kg/day)
  • Hydrogen flow range: 10 -100%
  • Operating pressure: 15 – 40 barg (217-580 psig)
  • Hydrogen purity (before gas purification): > 99.9%; < 25 ppm O2; H2O saturated
  • Hydrogen purity (after gas purification): 99.999%; < 5 ppm O2; < 5 ppm H2O
Electrical requirements
  • Voltage: 3 x 400 VAC ± 10% (3Ph+N) / 3 x 480 VAC ± 10% (3Ph+N)
  • Frequency: 50 Hz ± 5% / 60 Hz ± 3%
  • Power (BoP + Stack):  164.8 kW
  • Stack consumption: 4.7 kWh/Nm3 H2
  • AC power consumption (BoP + stack): 5.2 kWh/Nm3 H2
Feed Water – Demi Water (optional Water Treatment Plant is not included)
  • Consumption: < 1 L/Nm3 H2
  • Conductivity: > 10 M?cm (< 0.1 uS/cm); TOC < 30 ppb
  • Pressure: 2-3 barg (29-43 psig)
  • Temperature: +5 ºC to + 40 ºC (+41 ºF to +104 ºF)
Control system
  • PLC: Fully automated and unattended with 15″ color touch screen
  • Communication: Modbus TCP/IP or Profinet (RJ45 port)
Environmental conditions
  • Ambient temperature range: +5 ºC to + 45 ºC (+41 ºF to +113 ºF)
  • Humidity: 0 to +95% (non-condensing)
  • Air ventilation: Available from a non-hazardous area
  • Installation area: Indoor/Outdoor
Dimensions and weight
  • Dimensions (LxWxH): 20 ft container (6.0m x 2.4m x 2.9m) (19.7ft x 7.9ft x 9.5ft)
  • Approx. weight: 11,000 kg (24,251 lb)
Standards & regulations
  • Compliance: CE, ISO 22734-1 / NFPA 2-2016 & NFPA 70
Other characteristics
  • Duty cycle: 100% (24/7)
  • Start-up time (from stand-by): < 1 sec
  • Cold start time: < 5 min
  • Nitrogen Supply System: For each purge, consumption is <0.2 kg at 3 barg (to be supplied by the customer)
  • Instrumentation air System: Consumption 7 Nm3/h at 10 barg (to be supplied by the customer)

Main characteristics
  • Electrolysis type: PEM (Proton exchange membrane, caustic free)
  • Number of cell stacks: 2
Hydrogen gas production
  • Max. nominal hydrogen flow: 63.3 Nm3/h (136.58 kg/day)
  • Hydrogen flow range: 10 -100%
  • Operating pressure: 15 – 40 barg (217-580 psig)
  • Hydrogen purity (before gas purification): > 99.9%; < 25 ppm O2; H2O saturated
  • Hydrogen purity (after gas purification): 99.999%; < 5 ppm O2; < 5 ppm H2O
Electrical requirements
  • Voltage: 3 x 400 VAC ± 10% (3Ph+N) / 3 x 480 VAC ± 10% (3Ph+N)
  • Frequency: 50 Hz ± 5% / 60 Hz ± 3%
  • Power (BoP + Stack):  329.2 kW
  • Stack consumption: 4.7 kWh/Nm3 H2
  • AC power consumption (BoP + stack): 5.2 kWh/Nm3 H2
Feed Water – Demi Water (optional Water Treatment Plant is not included)
  • Consumption: < 1 L/Nm3 H2
  • Conductivity: > 10 M?cm (< 0.1 uS/cm); TOC < 30 ppb
  • Pressure: 2-3 barg (29-43 psig)
  • Temperature: +5 ºC to + 40 ºC (+41 ºF to +104 ºF)
Control system
  • PLC: Fully automated and unattended with 15″ color touch screen
  • Communication: Modbus TCP/IP or Profinet (RJ45 port)
Environmental conditions
  • Ambient temperature range: +5 ºC to + 45 ºC (+41 ºF to +113 ºF)
  • Humidity: 0 to +95% (non-condensing)
  • Air ventilation: Available from a non-hazardous area
  • Installation area: Indoor/Outdoor
Dimensions and weight
  • Dimensions (LxWxH): 20 ft container (6.0m x 2.4m x 2.9m) (19.7ft x 7.9ft x 9.5ft)
  • Approx. weight: 13,000 kg (28,860 lb)
Standards & regulations
  • Compliance: CE, ISO 22734-1 / NFPA 2-2016 & NFPA 70
Other characteristics
  • Duty cycle: 100% (24/7)
  • Start-up time (from stand-by): < 1 sec
  • Cold start time: < 5 min
  • Nitrogen Supply System: For each purge, consumption is <0.2 kg at 3 barg (to be supplied by the customer)
  • Instrumentation air System: Consumption 7 Nm3/h at 10 barg (to be supplied by the customer)
