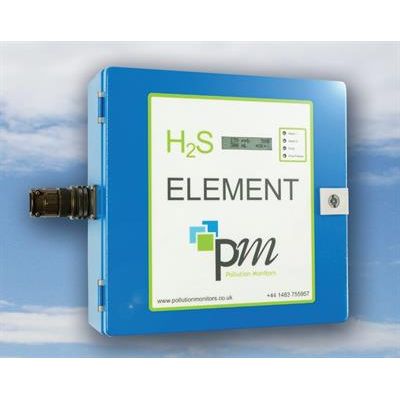

Pollution Monitors - Model Element Series -H2S Gas Monitors
The Element series of gas monitors has been designed to detect parts per billion (ppb) of toxic gases. The first in the series is our H2S Element.
Most popular related searches
gas monitoring
H2S gas monitoring
H2S gas monitor
H2S
sensor system
toxic gas
electrochemical sensor system
sample conditioning system
H2S gas
sample conditioning
- Electrochemical cell sensor technology
- Accurate to +/- 5% based on test gas fill tolerance
- Unique electronic noise interference elimination
- Continuous measurement every second
- EMC compliant to EN 61326-1 for immunity and emissions
- Complient to the Low Voltage Directive 2006/95/EC

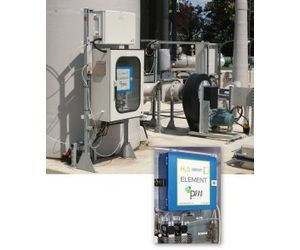

- Designed for operation within our sampling systems which use HSE approved safe engineering practices to enable monitoring of zone 1 and zone 2 gas streams
- Used in conjunction with our specialist bespoke sampling and conditioning systems the monitor provides accurate continuous readings of H2S with a 1 ppb resolution (0 – 90 ppb range) and a lower detectable level of 10 ppb
- Pre-set ranges of 0 – 90 ppb; 0 – 500 ppb and 0 – 1,500 ppb user selectable on site
- Digital display indicating gas reading, range and pump flow rate
- Automatic flow adjustment of internal pump maintaining optimum flow rate and eliminating operator adjustment
- Onboard digital outputs for Alarm 1, Alarm 2 and Fault, user selectable
- Analogue 4 – 20mA output
- 110 or 240V versions
- Flow failure digital output
- Unique swap out sensor enclosure (see figure 1)
