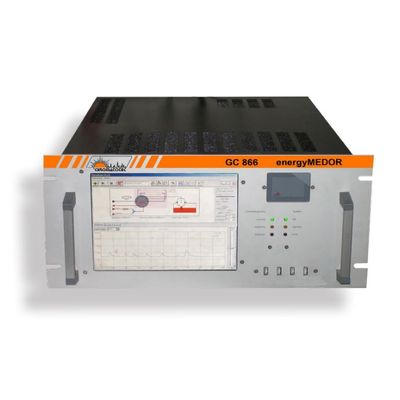

energyMEDOR - H2S, Mercaptans, THT, Sulphides and Total Sulfur Analysis

The energyMEDOR is an automatic and isothermal gas chromatograph dedicated to sulfur compounds analysis (H₂S, mercaptans and sulphides) in different matrices.

Two versions exist : the energyMEDOR ppm which measures at ppm levels and the energyMEDOR ppb which measures at ppb levels.

• Loop injection by automatic valve
• Detection is made by a gas-liquid reaction
• Sulfur specific detector - no interferences
• The detector life is in excess of 10 years

• Online, continuous sampling
• No interference from other compounds
• Low maintenance instrument – detector life may be up to 10 years
• Automatic Validation of results by Internal Permeation Tube
• Modifiable threshold alarms – High / Low alarm for odorising processes

Chromatotec developed software system enables :

• Remote monitoring & injection control
• Full traceability with on board archiving of results
• QC Set up and control of threshold alarms
• Export of data MODBUS / MGS1 / 4-20mA / 0-10V

• Fully compliant with ASTM D 7493-08 : Standard Test Method for Online Measurement of Sulfur Compounds in Natural Gas and Gaseous Fuels by Gas Chromatograph and Electrochemical Detection
• Continuous monitoring with automatic online sampling
• Analytical performances:
• Specific and very sensitive to sulfur compounds
• Results validation by automatic standard injection
• Long term stability using wet cell detector installed in reservoir
• Extremely low maintenance
• Very long life time detector, up to 10 years
• Low gas consumption, can be reduced in option
• More than 10 years data storage
• No cylinders required thanks to internal calibration tube
• Automatic control with process device
• Intelligence system with tunable and interactive alarms levels
• Powerfull VISTACHROM Chromatotec® software:
• Remote monitoring & injection control
• Full traceability with on board archiving of results and chromatograms
• QC Set up and control of threshold alarms
• Data export by MODBUS / 4-20 mA / 0-10 V
• Time stamp results

• Explosion proof Exp box
• ATEX Zone 2 : Ex II 3G Ex pz IIC T4
• CSA International Class 1 Div 2, group B, C & D
• Internal calibration and validation system with permeation tube
• Multiple stream selector (up to 16 streams with one analyzer)
• Calculation modules (Average / Statistics / Odor index...)
• Module 4-20 mA / 0-10 V 4 output and 0 mA for instrument default
• Electric selection valve to reduce air consumption
• 24 V DC power supply

• Detection limits:
• energyMEDOR® ppm: H2S: 0.1 ppm (0.1417 mg/m3), mercaptans: 0.1 ppm
• energyMEDOR® ppb: H2S: 5 ppb (7.0 µg/m3), mercaptans: 5 ppb
• Range (adjustable depending on application): 0/10 or 0/100 or 0/1000 (ppb or ppm)
• Relative Standard Deviation:
• RSD < 3 %: on concentration over 48 h
• RSD < 0.5 %: on retention time over 48 h
• Cycle Time for the following different analysis:
• H2S/MeSH 120 s
• THT 180 s (if only THT)
• H2S, mercaptans1 600 s
• H2S, mercaptans2, THT 1800 s
• Calib during analysis + 200 s
• Supervisor:
• Embedded computer Windows® based with LCD display
• 32 GB of Hardware storage on SSD memory
• Communication: MODBUS protocol included in standard
• Gas supply:
• Carrier: Dry air or N2 (3 bar): < 4 ml/min
• Use N2 if THT is present
• Internal calibration: 50 ml/min for ppm range
• Sample inlet 1 bar
• Pneumatic valve 90 ml/commutation
• Power supply: Main: 230 V / 115 V or 50/60 Hz
• Electrical consumption: Average: 150 VA
• Dimensions and weight:
• Rack: 19" (5U)
• Height: 222 mm
• Width: 482 mm
• Depth: 660 mm
• Net Weight: 22 Kg
