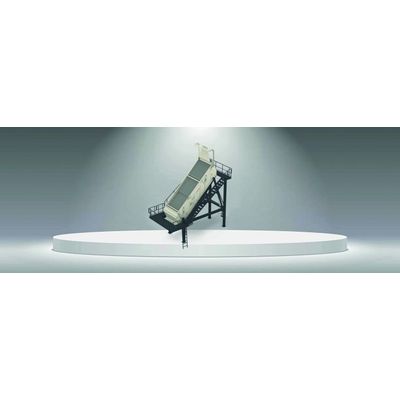

HailstoneModel HFS-1862-2D -Fine Screen

SHARE

Hailstone fine screens have a vibrating screening media and static body frame resulting in better productivity and efficiency. The screening media are alone vibrated with lesser amplitude and higher frequency which reduce wear on screening media to increase screening media maintenance interval. The vibrations from vibromotors are consequent, thereby avoiding uneven vibrations resulting in better media life and screening.

Most popular related searches
  • High amplitude screens
  • Circular motion screening
  • Huck bolted screen body
  • Stress analyzed structure
  • Compact cartridge design for long life
  • Wide range of screening application
  • Easy stroke adjustment
  • Applicable for wet screening
  • Independent drive system

  • Length, mm: 6000
  • Width, mm: 2000
  • Number of decks: 2
  • Inclination angle range, degree: 36-45
  • Maximum feed size, mm: <10
  • Speed, rpm: 3600
  • Drive power, kW: 10 x 0.8
  • Approximate weight, kg (lbs): 4398 (9696)
