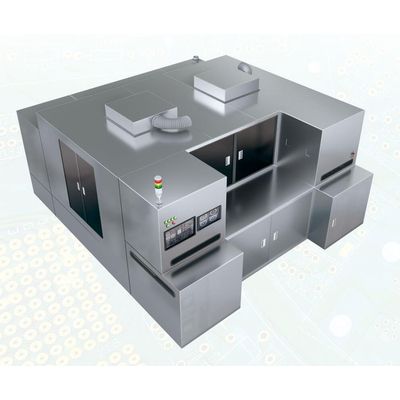

Hakuto - Model HAP8210S -Direct Imaging system
After 30 years` experience with exposure systems, Hakuto expanded their product portfolio by a fully automated high throughput and high accuracy DI-solution.
- TI DMD-driven system
- 4 multi wave-length long-life LEDs: 365, 380, 395 and 405nm, tunable output power
- Multi photo head configuration (4, 6 or 8 heads in one exposing unit)
- Image grid 0,9/1,8 µm, line/space: 25 µm
- High throughput
- Registration accuracy: 15 µm
- Registration repeatability: 10 µm @ 3 Sigma
- Flexible and modular machine concept: Semi-automatic up to fully automatic incl. flip unit
- Customized solutions or roll to roll available as well
- Low operation costs through long-life LEDs, no maintenance contract required, minimized down time
- Very easy maintenance
