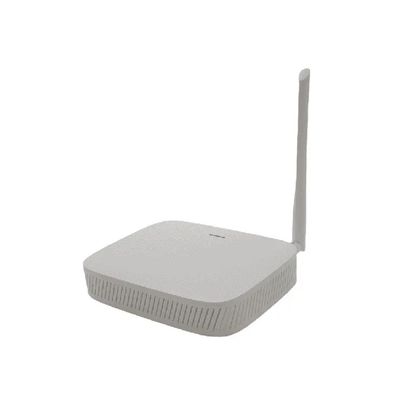

HAC - Model HAC-GWW-U - LoRaWAN -Half Duplex 8-Channel Indoor Gateway
This is a half duplex 8-channel indoor gateway product, based on LoRaWAN protocol, with built-in Ethernet connection and simple configuration and operation. This product also has built-in Wi Fi (supporting 2.4 GHz Wi Fi), which can easily complete gateway configuration through the default Wi Fi AP mode. In addition, cellular functionality is supported. It supports built-in MQTT and external MQTT servers, and PoE power supply. It is suitable for applications requiring wall or ceiling mounting, without the need to install additional power cables.
Most popular related searches
- Integrated Semtech SX1302 front-end chip, half duplex, supporting LoRaWAN 1.0.3 protocol (and backward compatible)
- Support 2.4 GHz Wi Fi AP configuration
- Support PoE power supply
- Support the uplink multi link backup of Ethernet, WiFi and cellular network (optional LTE Cat 4), and the Multiwan can realize network switching
- Support OpenWRT system with Web UI, which can easily realize network configuration and monitoring
- Access to Chirpstack, TTN or Tencent Cloud IoT platform LoRa ® Network server
- Built in LoRa server, easy to implement gateway application development and integration
- Power supply mode: POE, 12VDC
- Transmitting power: 27 dB (Max)
- Supported frequency band: EU433/CN470/EU868/US915/AS923/AU915/IN865/KR920/RU864
- Size: 166x127x36 mm
- Operating temperature: -10 ~ 55?
- Networking: Ethernet, WiFi, 4G
- Antenna: LoRa ® Antenna, built-in LTE antenna, built-in Wi Fi antenna
- IP protection grade: IP30
- weight: 0.3 kg
- Installation method: Wall installation, ceiling installation, T-shaped keel installation
- The new improved shell design
- The USB interface for debugging
- User-defined breathing lamp
- Run WisGate OS
- Support LoRaWAN1.0.3 protocol specification
- Support Basic Station access
- Support Multiwan function
- Matching gateways, handhelds, application platforms, testing software etc. for system solutions
- Open protocols, dynamic link libraries for convenient secondary development
- Pre-sales technical support, scheme design, installation guidance, after-sales service
- ODM/OEM customization for quick production and delivery
- 7*24 remote service for quick demo and pilot run
- Assistance with certification and type approval etc.
- 22 years industry experience, professional team, multiple patents
