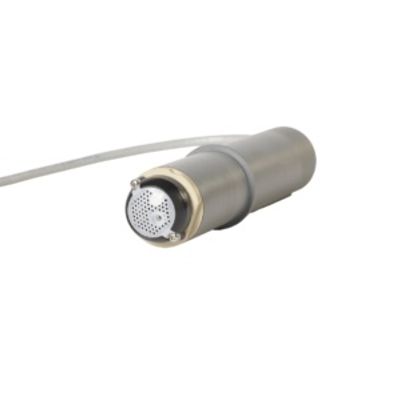

Halogen - Model HaloMP5 -Multiparameter Chlorine Sensor
A breakthrough for drinking water and wastewater testing, Halogen`s HaloMP5™ Multiple Parameter Sensor tests 5 parameters using 3 electrode amperometric chlorine measurement. The HaloMP5™ is unaffected by flow or pressure, is self cleaning, automatically compensates for pH, and is NSF61 certified. It is also highly accurate, requires little to no maintenance, can be installed in a flow cell, directly in a pipe, or in-situ into a tank, channel, or basin. Simple to install and inexpensive to operate, the Halogen HaloMP5™ is unlike any other sensor on the market today.
The HaloMP5™ is unique in the market.
- Self-cleaning & low maintenance
- No reagents
- Flow independent - insensitive to changing process conditions
- No membranes or electrolyte
- No waste stream required
- Low drift- calibration stable for many months
- Factory calibrated, minimal drift
The HaloMP5™ measures vital information in a reliable and low cost manner.
- Free or Total Chlorine
- Conductivity
- pH
- ORP
- Temperature
Compared to typical solutions, the HaloMP5 has many advantages when deployed:
- Easy to install
- Installed directly into a wet tap valve, side stream, or submersible
- Remote mounting of more than 100 feet or more from monitor or SCADA input
- Connect to up 5 sensors to a single display
- System is equipped with 4 20mA or MODBUS RTU. Other communication protocols are available upon request.
- 24VDC or 90 to 240 VAC operation
The HaloMP5™ saves additional money over time due to:
- Low Maintenance Cost
- No membranes, reagents, or electrolyte
- Long calibration intervals
- Easy calibration if needed
Flow Independent Measurement
The sensor is unaffected by flow velocity changes from 0 to 4 m/s. An integrated pump that utilizes a long lasting, brushless motor delivers a fixed velocity across the electrodes, creating flow independence in any installation. The high velocity flow across the electrodes improves sensitivity and lowers the Signal to Noise Ratio.
Self-Cleaning Amperometric Chlorine Sensor
An electrochemical cleaning method resists polarization and adsorption of organics. Cleaning beads continuously clean the sensor. This keeps the electrode surfaces, including the pH sensor, free from buildup, scaling, and biofouling. Solid metal electrodes last the life of the system.
These features combine to enable very long intervals between calibration.
No Waste Stream
Because the sensor can be installed as a side-stream unit, directly in a pipe, or submerged in a tank, there is no waste.
Easy to Monitor
An optional local Display is available for viewing parameters, troubleshooting and calibration of up to 5 separate HaloMP5™ units.
A Wet Tap installation method enables direct insertion into a distribution pipe. The highly integrated design reduces the electronics cost and size, while increasing reliability.
