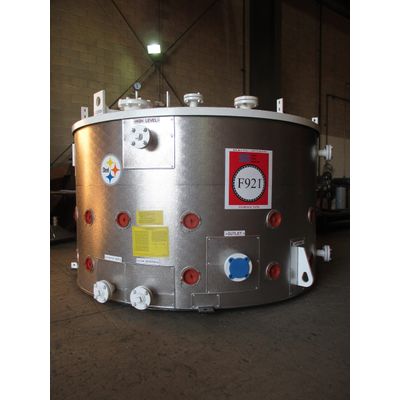

Hamilton - Heated and Insulated Storage Tanks
From freeze protection to maintaining heated liquids at 400° Farenheit, Hamilton Tanks provides engineered heating and insulation systems for your storage tank needs.
Most popular related searches
insulation storage tank
digital temperature controller
mineral fiber
stainless steel tank
chemical protective
chemical protection
steel tank
- Engineered solutions for heating and maintaining temperature of your liquid product
- Thermal Fluid, Steam, Electric and Direct Fired Kit heating solutions available
- Heating Coils constructed of 2" Schedule 40 Finned Tube or 2" Schedule 40 Smooth Seamless Pipe with 180° weld returns. Also available in Schedule 80.
- Immersion Electric heating elements sized and engineered for the capacity of your tank, the temperature you wish to maintain, and the heating properties of the liquid.
- Digital Temperature Controls provided for setting the min and max temperature range
- The heating system and controls are installed in the tank prior to shipment
- Tanks are insulated at Hamilton Tanks production facility prior to shipment
- Standard shell insulation is Mineral Fiber Tank Wrap FSK secured in place with stainless steel banding
- Vertical tanks sitting direct on the foundation are insulated around the bottom shell with Curved Segmented Foamglas to prevent water wicking around the bottom of the tank
- Options for top and bottom tank insulation using Fiberglas Flat Block with an extremely high compression rating to provide additional support above it.
- Able to insulate dished heads, cone tops or cone bottoms
- Insulation is protected and finished with .032 stucco embossed aluminum and secured in place with pop rivets.
- All tank nozzles are neatly trimmed with escutcheons and clealy labeled for safe operation of your storage system
- Every seam where aluminum is in contact with tank metal is caulked to keep moisture away from the insulation
- Options available upon request for painted aluminum skin
