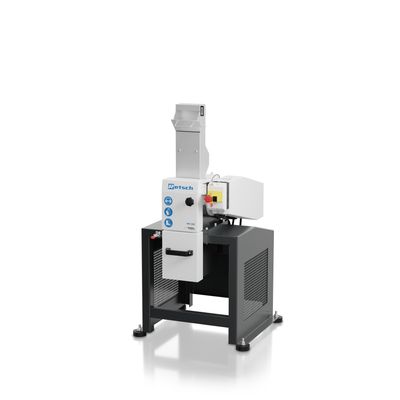

Retsch - Model HM 200 -Hammer Mill
Hammer mills are used for crushing, pulverizing and deagglomeration of medium-hard, hard, brittle, tough and fibrous samples. The rugged RETSCH Hammer Mill HM 200 accepts large feed sizes up to 100 mm which can be reduced to less than 0.8 mm, depending on the sample properties. The mill is ideally suited for processing large volumes batchwise or continuously which ensures high sample throughput. Thanks to features like rugged design, easy handling and quick cleaning, the HM 200 is equally suitable for use in laboratories or pilot plants.
Easy cleaning of the rotor and the hammers thanks to

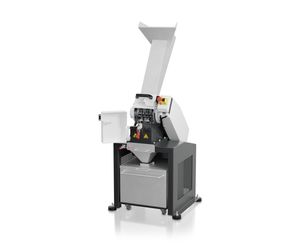

Fold-back hopper to gain access to the crushing chamber from above
Additional fold back option in the middle part of the machine allows easy cleaning of rotor and hammers from below
To ensure a long service life of the machine, even when mostly used for tough crushing tasks, the following parts can be exchanged by the user:
Wear plates inside the mill
Rotor with the swing hammers
A safety switch and the brake motor ensure that the unit comes to an immediate stop, e.g. if the door is openend unintendently.
