AGICO - Hammer Mill

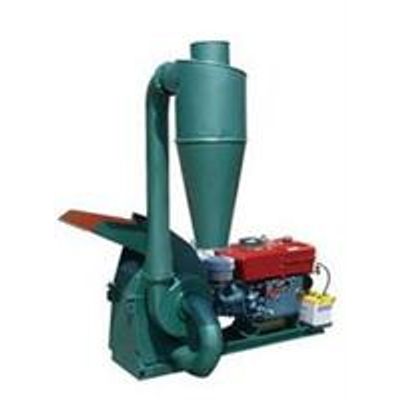

Hammer mill grinder to break the main mode of operation is the role of high-speed rotation of the hammer hit group. The hammer mill machine is suitable for fragmentation of brittle materials. For example, straw, corn stalk, peanut shell, weed and tree branches and other materials can be broken to about 2-5mm. And hammer mill grinder can ensure that the product size keep uniformity, not mixed into the size of the product large size particles, more used in biomass medium grinding and fine grinding in the process of biomass processing. Compared with other types of hammer mill machine, AGICO hammer mill has the advantages of simple and compact structure, large production capacity, large crushing ratio and less power consumption. In addition, the rotor balance in hammer mill machine in the use of the process also need to pay attention to. If the rotor is not balanced, harmful vibrations will occur at high speeds. If the hammer does not conform to strike balance requirements, will also produce harmful reaction, additional energy consumption and reduce the service life of bearing.

Why We Need Use A Hammer Mill Grinder During Pellet Making Process?

For proper working of biomass pellet mill and briquetting machine in the complete pellet plant, size of biomass waste is important. There are two types of crushing machine available for make suitable size sawdust or biomass grain for pellet mill. They are wood crusher and hammer mill. The choose of proper model depend on the types and size of your raw material.

Wood Crusher

Wood crusher (chipper) is suitable for preparing sawdust or biomass small grains for wood pellet mill and briquetting plant. It can crush raw wood of size less than 200mm (diameter) into size of 3-5mm (diameter).

• Model Wood Crusher(For fresh or dried raw wood)
• Capacity(kg/h) 400-500
• Diameter of Feeding Material Not more than 150-200mm
• Size of crushed material Max. Ø5×5mm
• Motor 11kw
• Gross/Net Weight 400/350kg
• Overall Dimension (mm) 1250*700 *910
