Garrison Flood Control, a Division of Garrison Systems, LLC
Garrison Flood Control - Hammerhead™ Aluminum Flood Plank & Floodgate System

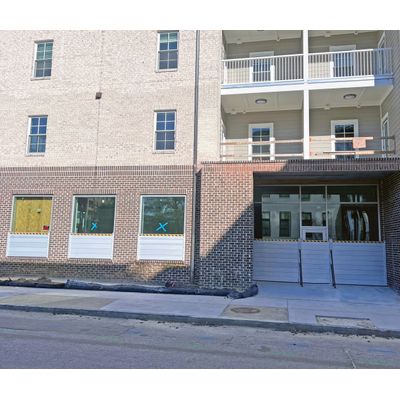

Hammerhead™ Aluminum Flood Planks are the latest innovation in floodgate technology. This system utilizes U-Channel Posts that install on each side of the desired protected area. With Hammerhead™ you gain both durable protection and subtlety with the posts being unobtrusive to the existing entryway. Our U-Channel Posts install permanently without ever needing to be removed or re-installed for protection. From there, whenever a flood threat arises, aluminum planks are easily inserted into the channel providing you with durable protection against rushing water. Hammerhead™ provides stackability with numerous aluminum planks being added. This creates a stop-log floodgate barrier that is perfect for both residential and commercial properties. Protect Entrances, Garages and Doorways From Flooding: - Perimeter Opening Protection - Doorways and Window Wells - Garages and Ramps - Basement Stairwells - Loading DocksMost popular related searches
PLANKS
- Plank Material: 6063 T-6 Aluminum
- Plank Width: Varies Depending on Opening Size
- Plank Weight: 2.016lbs per ft.
- Individual Plank Height: 7.87” (20cm)
- Plank Depth: 1.58” (40mm)
- Plank Extrusion Wall Thickness: 0.0787” (2mm)
- Sealing Strip Material: Rubber EPDM
- Tallest Protection Height: 6.6ft (10 planks)
POSTS
- Post Material: 6063 T-6 Aluminum
- Post Height: Varies depending on number of planks
- Post Depth: 3.94” (10cm)
- Post Width: 2.36”
- Post Weight: 3.025lbs per ft.
- Middle Post Width (Double Channel): 5.12”
- Middle Post Depth: 3.94” (10cm)
- Middle Post Weight: 6.05lbs per ft.
- Sealing Material: Rubber EPDM
