Forrec - Model Z14 -Hammers Mill
FromFOR REC S.P.A.

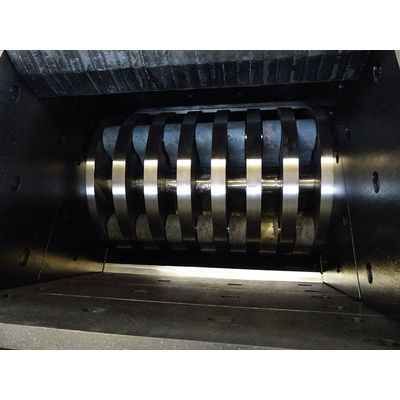

Hammer mills allow the grinding of heterogeneous materials and the transformation of the metal scraps into small fragments. The Forrec hammer mill mod. Z14/700 stands out for its robust structure and the extreme speed of access to components subject to wear.
Most popular related searches
The main advantages of the Forrec hammer mill are:
- Hydraulic opening of the upper chamber
- Hydraulic lifting of the rotor by lifting the upper armor
- Hydraulic foreign body ejection door opening
- Sieve with sectors blocked by the upper chamber
- Hammers configuration customizable by type, thickness and number
- Adjustable armor
- Special anti-vibrating system to reduce stress, positioned on the support structure of the machine
Overall dimensions:
8800 x 1770 x H1233 mm
Blades:
dimension rotor
Rotor dimensions:
L712 – Ø600 mm
Hammers thickness:
40 mm
Weight:
5000 Kg
N. of hammers:
28
Motor drive:
75 kW / 90 kW
- Aluminum motors
- Pre-shredded light metal scraps
