Jenco VisionPlus - Model pH6810 - ...

Temperature Meter

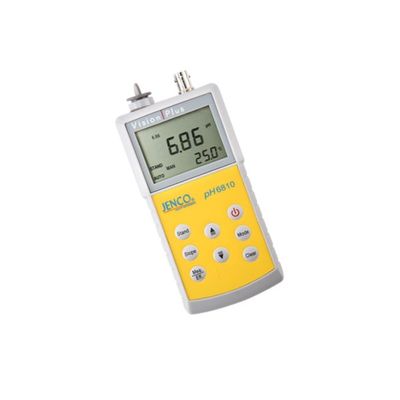

Jenco VisionPlus pH6810 is an easy to use, IP67 rated pH meter with mV and temperature readout. Key features include an IP67 rated body, 2 or 3 point calibration, electrode efficiency and manual/automatic temperature compensation. VisionPlus pH6810 is RoHS compliant.

Most popular related searches

Large LCD with dual display of pH and temperature or ORP and temperature
IP67 rated water-proof and dust-proof case (optional 3-in-1 pH/ref/temperature electrode is fitted with special connectors that maintains IP67 rating)
2 or 3 point calibration
Manual or automatic temperature compensation
US or NIST buffer sets
Electrode efficiency in percentage
End-point sensing and auto-lock
Dedicated operation buttons with audio feedback
Protective, shock-proof rubber boot

pH Range-2.00 to 16.00 pH
pH Resolution0.01 pH
pH Accuracy±0.1% F.S. ± 2 digits
ORP Range-1999 to 1999 mV
ORP Resolution1 mV
ORP Accuracy±0.1% F.S. ± 2 digits
Temperature Range-10.0 to 120.0 °C
Temperature Resolution0.1 °C
Temperature Range±0.5 °C
pH Buffer Recognition7.00, 4.01, 10.01 pH or 6.86, 4.00, 9.18 pH
pH Temperature Compensationauto or manual -10.0°C to 120.0 °C
pH Buffer Temperature Range0 to 60.0 °C
pH Electrode Offset Recognition±90 mV at 7.00 or 6.86 pH
pH Electrode Slope Recognition±30% at 4.00, 4.01, 9.18 and 10.01 pH
Input Impedance>10 12 Ohms
Temperature Sensorthermistor, 10 k Ohms at 25°C
Power4 X AAA batteries
Battery Life1000 hours
Calibration Back-upEPROM
Audio Feedbackall keys
End point Sensing & HoldYes
Display (pH /mV/Temperature)11 x 7 mm high LCD
Ambient Temperature Tange0 to 50 °C
Relative Humidityup to 90%
CaseIP67 water-tight case
Dimensions (W x D x H)75 x 157 x 35 mm
Weight230 grams (batteries included)
