Hydro Gate - Hand Pull Stop Gates

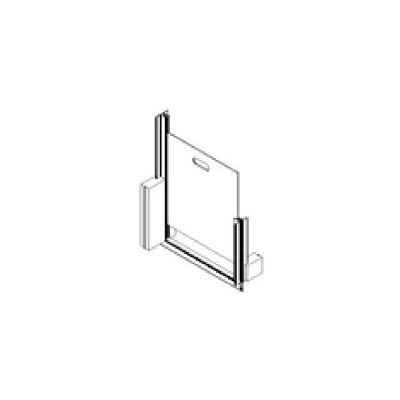

Hydro Gate hand-pull stop gates feature an extruded metal or break formed plate section to act as a guide for the gate slide. The guide can be embedded in side walls or mounted on the face of a rectangular flume or conduit. The gate consists of an aluminum or stainless steel plate which can be reinforced if necessary, and has hand holes or handles for manual opening of the gate. A hand-pull gate is an economical way to divert water in rectangular channels.
- Flood Control
- Irrigation Projects
- Drainage Systems
- Soil Conservation Projects
- Water Treatment Plants
- Sewer Treatment Plant
- And more
The frame shall be special extruded aluminum shape with securely attached UHMWPE liners with lip sealing action at sides of opening. The frame design shall be suitable for embedment in concrete or for anchor bolt mounting on a grout pad.
The frame lower member shall contain a securely retained neoprene T section seal for complete closure against the lower edge of the slide.
The slide shall be ¼” thick aluminum plate with one or two handles or hand holes. Edges of holes or handles shall be rounded for comfortable grip.
The slide shall be reinforced as necessary to limit deflection under water head to L/360.
User shall consider lifting capability of operating personnel. Consult the manufacturer for weights and lifting loads to keep them within human limits. Generally gates larger than 36” x 36” require auxiliary power to remove or insert.
Liners shall be UHMW polymer of special molded shape to prevent metal to metal contact. They shall be securely fastened in the frame groove and shall have lip action sealing.
