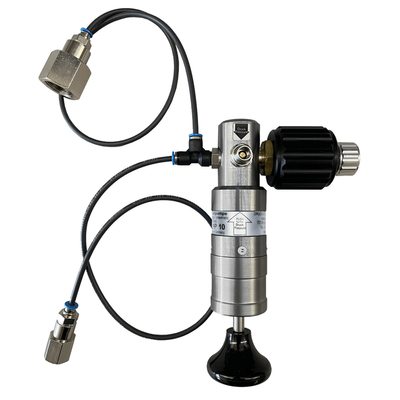

Eurotron - Model PGS10 -Hand Pump for Low Pressure Calibration
The PGS-10 is a very low-pressure pneumatic hand pump designed to generate both vacuum to -0.850 mbar and pressure up to 10 bar/145 psi. The PGS-10 has two pressure ports with quick fit connectors for the reference pressure indicator and the unit under test. Test hoses are terminated with a push-in 1/4-BSP female for unit under test and 1/2″ BSP Female for reference.
The PGS-10 is an hand held calibration hand pump suitable for calibrate very low pressure devices
- Generate vacuum and pressure
- Pressure up to 10 bar
- Generate vacuum to -0.85 mbar
- fine adjustment up to 0.01 mbar
- Precision valve for bleed control
The PGS-10 is light, compact and very easy to use. The special and very sensitive vernier control allow for precise pressure setting with in 0.01 mbar.
The PGS-10 low-pressure pneumatic hand pump is particularly suited for calibration of very low pressure devices such differential pressure meters. When used in conjunction with our hand held digital pressure indicator it becomes a powerful and precise pressure calibrator.
