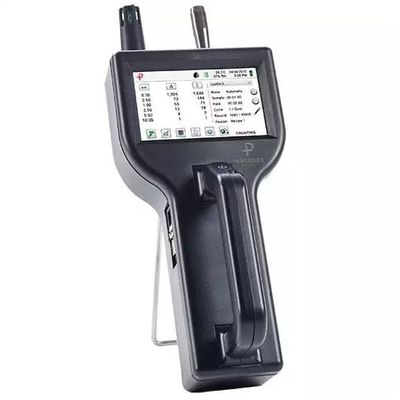

Particles Plus - Model 8506-20 - 0.3 - 55 µm @ 0.1 CFM -Handheld Airborne Particle Counter for Large Particles
The Particles Plus 8506-20 Handheld Particle Counter measures 0.5 to 55.0 µm with a flow rate of 0.1 CFM (2.83 LPM). Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus data-download software. Particles Plus counters can be controlled and monitored remotely via web browser. The 8506-20 mass concentration mode approximates density in µg/m³ and allows for density and refractive index corrections to ensure accuracy. All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8506-20 ensures compliance with an on-board pulse height analyzer.
- Counts particles up to 55.0 µm (8506-20) and 75.0 pm (8506-30)
- Industry`s highest concentration of 15,000,000 particles/ft3 @ 10% coincidence loss
- Ideal for use in research, industrial health and safety, and indoor air quality applications
- >10 hours continuous operation on a fully charged battery
- Industry`s first Sleep Mode and Power Conservation Mode with Intelligent Battery
- The most comprehensive internal self-diagnostics of any handheld particle counter
- Real-Time Meter detects particle contamination sources with visual and audible indication
- Internet of Things (loT) communication allows for network or cloud-based data options
- Model 8506-20: Measures 0.5 to 55.0 µm
- Model 8506-30: Measures 0.5 to 75.0 µm
- 0.1 CFM (2.83 LPM) flow rate
- Long life laser diode technology
- Measures up to 6 channels of simultaneous data
- Approximates mass concentration in pg/m3 with density and refractive index corrections
- Integrated handle for one-handed operation
- Large easy-to-use icon driven color touch screen display
- Temperature and relative humidity probe included
- Stores up to 45.000 sample records. 1,000 sample locations and 50 recipes
- Annotation function allows user to save 32 character notations to a sample record
- Remote diagnostics allows for remote service investigation through the internet
- Easy configuration and transferable from instrument to instrument
- Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485 or RS232
- Displays user-definable reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
- Internal audible alarm with comprehensive alarm management
- User-selectable channel sizes
- Complies with ISO 21501-4 and JIS B9921 standards
- Easy to clean and wipe down with minimal particle traps
- Seamless integration into a facility monitoring system
- Lightweight high-impact injection molded plastic enclosure
- 2 year limited warranty. Extended warranties available.
