TR Series - Handheld and Benchtop Color Measurement Spectrophotometer

Coatings, Plastics, Textiles, Printing, Food & Beverage, Cosmetics, Creams, Gels, Liquids

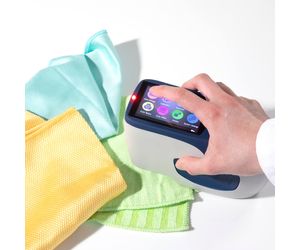

• Handheld and Portable
  Weighing only 600 grams, the TR 520 is the perfect lightweight portable spectrophotometer. It’s compact and ergonomic design offers easy one-handed operation, helping to prevent operator fatigue and enabling more measurements per hour. Offering the possibility of 5000 measurements with 8 hours battery life enables the TR 520 to be used anywhere on site for a prolonged period of time.
• Accuracy
  Giving accurate and repeatable results is what the TR 520 does best. The on board camera based locator, enables the user to position the instrument accurately on the chosen sample with minimal contact. This feature dramatically minimize the chances of geometric metamerism.
• Aperture Options
  Choosing the correct aperture size for your surface is extremely important for accurate measurement. The TR 520 gives you the flexibility to adjust aperture size from 10mm/8mm to 5mm/4mm with the switch of a button. This adjustability of aperture helps to ensure the instrument is perfect for your measurement needs.
• Calibration
  The calibration board supplied with every TR 520 incorporates a white tile and black calibration plate. This allows minimum and maximum readings to be checked every 24 hours.
• FREE Software
  As standard, the TR 520 comes with a FREE PC software package. The OnShade software allows for a detailed data analysis which can then be shared or printed via the optional micro printer accessory.

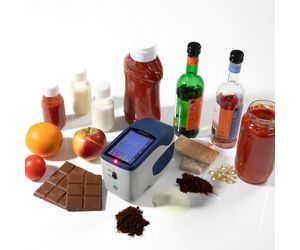

• Suitable for Multiple Applications
  The versatility of the TR 520 means its suitable for multiple applications and has the ability to report CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter Lab colour spaces, ∆E*L*a*b*, ∆E*C*h°, ∆E*uv, ∆E*94, ∆E*cmc(2:1), ∆E*cmc(1:1), ∆E*00, ∆E Hunter Colour Difference Formulars; and can be set to D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 illuminants. In addition, the TR 520 can report a wide selection of other Colorimetric Index’s: WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM, E313, CIE/ISO), Metamerism Index (MI), Colour stain, Colour Fastness, Colour Strength and Opacity. This data can be seen as either Spectral Value/ Graph, Colorimetric Value, Colour Difference Value/ Graph, PASS/FAIL Result, Colour Offset or Samples Chromaticity values

_{Description is example of TR 520 other units may vary}

Applicable Standard: ASTM 313, ASTM D1925, ASTM E308
Colour Type: Opaque
Optical Geometry: Reflect: di: 8°, de: 8° (diffused illumination, 8 degree viewing angle)
Integrating Sphere Size: 48 mm
Spectrophotometric Mode: Concave Grating
Sensor: 256 image Element Double Array CMOS Image Sensor
Repeatability: MAV/SCI: ΔE* ≤0.03
Display: 3.5 inch TFT colour LCD, Capacitive Touch Screen
Interfaces: USB
Spectral Interval: 10 nm
Measurement Mode: Single Measurement, Average Measurement
External Storage: 2000 Standards : 20000 Samples
Location Method: Camera View Finder Locating
Measured Reflectance Range: 0 - 200 %
Measurement Time: 2.6 s
Measuring Aperture: Dual Aperture: 10mm/8mm & 5mm/4mm
Specular Component: SCI & SCE
Colour Difference Formular: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00v, ΔE (Hunter)
Battery Life Time: 5000 measurements with 8 hours
Other Colorimetric Index: WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313, TI (ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Colour Fastness, Colour Strength, Opacity
Displayed Data: Spectrogram/Values, Samples Chromaticity Values, Colour Difference Values/Graph, PASS/FAIL Result, Colour Offset
Inter Instrument Agreement: MAV/SCI: ΔE* ≤0.15
Spectral Range: 400 - 700 nm
Bandwidth: 10 nm
Illuminants: CIE Illuminant D65, CIE Illuminant A, CIE Illuminant C, CIE Illuminant D50, CIE Illuminant D55, CIE Illuminant D75, CIE Illuminant F1, CIE Illuminant F2, CIE Illuminant F3, CIE Illuminant F4, CIE Illuminant F5, CIE Illuminant F6, CIE Illuminant F7, CIE Illuminant F8, CIE Illuminant F9, CIE Illuminant F10, CIE Illuminant F11, CIE Illuminant F12
Portability: Portable
Illuminant Life Span: 5 years, more than 3 million measurements
Observer: 2° / 10°
Environmental Conditions: 0 - 40 °C, 0 - 85 % Relative Humidity (non condensing), Altitude < 2000 m
Stock Conditions: -20 - 50 °C, 0 - 85 % Relative Humidity (non condensing)
Languages User Interface: English, German, French, Spanish, Portuguese, Chinese
Dimensions: 184 x 105 x 77 mm

_{Technical Data is example of TR 520 other units may vary}

TR 500 Spectrophotometer (1x8mm Aperture): Handheld spectrophotometer for surface colour measurement - Sphere geometry, 8mm aperture, colour touch screen, combined LED light

TR 500 Spectrophotometer (4 mm Aperture): Handheld spectrophotometer for surface colour measurement - Sphere geometry, 4mm aperture, colour touch screen, combined LED light.

TR 500 Spectrophotometer (1x3 mm Aperture): Handheld spectrophotometer for surface colour measurement - Sphere geometry, 1x3mm aperture, colour touch screen, combined LED light

TR 515 Spectrophotometer: Handheld, 45°/0° geometry, spectrophotometer designed to give accurate colour measurement information on a range of products such as paints, coatings, plastics, textiles, printing, food, cosmetics, and creams.

TR 520 Spectrophotometer: Handheld spectrophotometer for surface colour measurement - Sphere geometry, 4mm 8mm aperture, colour touch screen, combined LED light, UV light

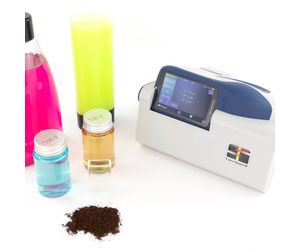

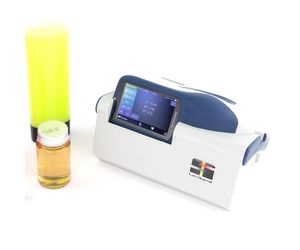

TRA 520 Handheld & Benchtop Sphere Spectrophotometer: Handheld benchtop spectrophotometer for colour measurement - Sphere geometry, duel aperture, colour touch screen, combined LED light, UV light

TRA 500 Handheld & Benchtop Reflectance Spectrophotometer: Handheld benchtop spectrophotometer for colour measurement - Sphere geometry, 8mm aperture, colour touch screen, combined LED light
