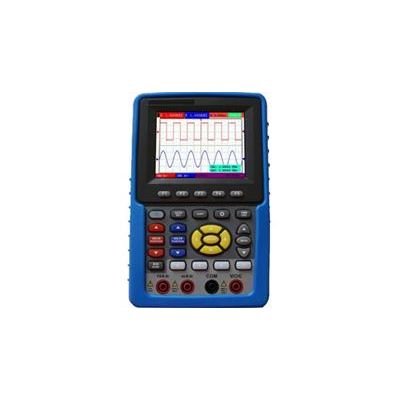

Berkeley - Model P2016 -Handheld Digital Storage Oscilloscope
The Model P2016 is a handheld oscilloscope that offers users 100 MHz bandwidth for evaluating fast signals and designs. The unit provides users with two independent channels and a built-in multimeter. The DMM offers manual or auto-ranging modes for measuring AC and DC voltage to 400 V, AC and DC current to 10 A, resistance to 40 MΩ, and capacitance to 100 μF. The oscilloscope has a maximum real-time sample rate of 100 MS/s and a record length of 6,000 points-per-channel for acquiring detailed waveforms. Call or email for your demo today!
Most popular related searches
- Electronic Circuit Debugging
- Education and Training
- Circuit Testing
- Design and Manufacture
- Automobile Maintenance and Testing
- 2-in-1 (DSO + Multimeter)
- Auto-Scale Function
- 20 Group Automatic Measurement Options
- USB Data Transmission Supported
- Rechargeable Li-ion Battery (6 hours backup)
- Waveform Record and Replay
- Multimeter Newly Supported SCPI
- Display: 3.7" color TFT-LCD
- Bandwidth: 100 MHz
- Channels: 2
- Sample rate: 1 GS/s
- Record length: 6,000 points-per-channel
- Maximum AC and DC voltage measured: 400 V
- Maximum AC and DC current measured: 10 A
- Maximum resistance measured: 40 MΩ
- Maximum capacitance measured: 100 μF
- Power source: Rechargeable lithium-ion battery or AC adapter for 100 to 240V, 50/60 Hz
- Dimensions (H x W x D): 180 x 115 x 40 (mm)
- Weight: 645 g
- Power Cord
- CD Rom
- USB Cable
- Probe
- Probe Adjust
- Multimeter Lead
- Adapter
- 5 V, 1 kHz
- Users Manual
- Capacitance Ext Module
- Soft Bag (optional)
- Metal Case
*Subject to change without notice.
