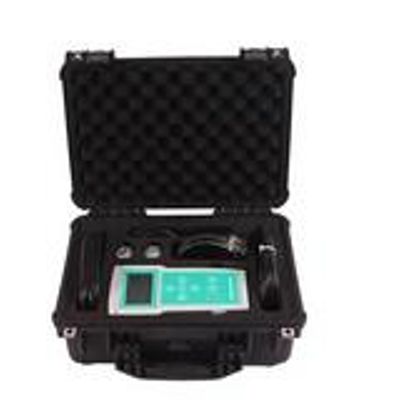

Lanry - Model DF6100-EH -Handheld Doppler Ultrasonic Flowmeter

• It is suitable for pipe sizes ranging from 40 to 4000mm
• For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
• Excellent low flow rate measurement ability, low to 0.05m/s
• A wide range of flow measurement, high flow rate can reach 12m/s
• High-temperature transducer is suitable to liquids of -35? ~ 200?
• Do not need to shut down the pipe flow when installing the transducers
• User-friendly configuration
• 4-20mA, OCT outputs
• Accuracy: 2.0% Calibrated span
• Rechargeable battery can work up to 14 hours

Transmitter:

• Measurement principle Doppler ultrasonic
• Resolution 0.25mm/s
• Repeatability 0.5% of reading
• Accuracy 0.5% -- 2.0% F.S.
• Response time 2-60s for optional
• Flow Velocity Range 0.05- 12 m/s
• Liquid Types Supported Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron.
• Power Supply AC: 85-265V Up to 14 hours with fully charged internal batteries
• Enclosure type Handheld
• Degree of protection IP65 according to EN60529
• Operating temperature -20? to +60?
• Housing material ABS
• Measurement Channels 1
• Display 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable)
• Units User Configured (English and Metric)
• Rate Rate and Velocity Display
• Totalized gallons, ft³, barrels, lbs, liters, m³,kg
• Communication 4-20mA OCT output
• keypad 6pcs buttons
• Size Transmitter:237X125X42mm  case:410X320X80mm
• Weight 0.6kg

Transducer:

• Transducers Type Clamp-on
• Degree of protection IP65. IP67 or IP68 according to EN60529
• Suited Liquid Temperature Std. Temp.: -35?~85? for short periods up to 120?
• High Temp.: -35?~200? for short periods up to 250?
• Pipe diameter range 40-4000 mm
• Transducer Size 60(h)*34(w)*32(d)mm
• Material of transducer Aluminum for standard temp. sensor,and peek for high temp. sensor
• Cable Length Std: 5m
