Chematest - Model 20N -Handheld Instrument

• Photometer with state of the art microelectronics and clearly arranged display.
• Well-devised analytical set in portable case.
• Photometric determination of pH-value with phenolred.
• Determination of disinfectants with Oxycon reagents following the DPD method.

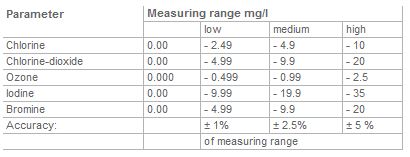

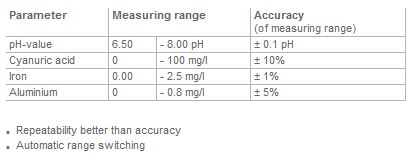

• Determination of free and bound chlorine, chlorine-dioxid, ozone, iodine, bromine, cyanuric acid, dissolved iron, dissolved aluminium and pH-value.

Options:

• Reagent set`s
• Temperature measurement (electronic thermometer)

Scope of supply:

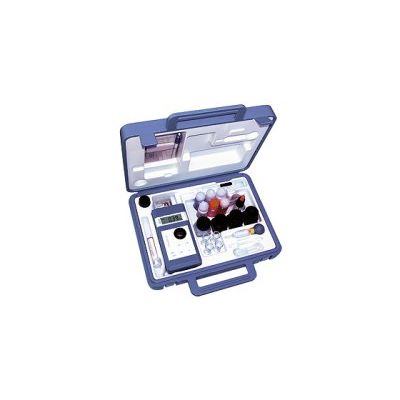

Photometer in carrying case (38x27x10 cm) with 4 glass cuvettes, 1 cuvette lid, 2 glass rods, 1 ball pipette, 3 sample flasks, 1 waste flask, 1 note pad, 1 waterproof pen and 4 batteries.

Instrument:

• Photometer, microprocessor controlled
• Digital display
• Battery powered with economical power circuit for about 2000 determinations

Dimensions, weight:

• Instrument: 10 x 20 x 4 cm; 450 g
• Carrying case: 32 x 25 x 5 cm; 1.200 kg (complete)

Temperature measurement (Option):

• Electronic thermometer
• Measuring range: -50 to +170°C
• Resolution: 1°C
• Accuracy: ± 1°C
• Probe: InAisi316, length 130 mm, Ø 3 mm
• Size: 142 x 29 x 15 mm
• Battery: 4 x 1.4 V
• Battery life: approx. 1000 hours
