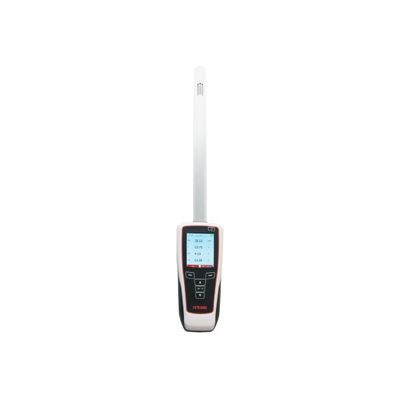

Rotronic Hygropalm - Model HP-GTS -Handheld Measuring Instrument
The HP-GTS from Rotronic is a tried-and-tested instrument for measurement of equilibrium relative humidity and temperature in stacks of paper and cardboard.
Most popular related searches
Applications
- Humidity measurements in stacks of paper, cardboard and textiles for paper and textile technicians and printers
Features
- Range of application of instrument and probe: -10…60 °C / 0…100 %rh (non-condensing)
- Accuracy at 23°C: ±2 %RH, ±0.3 °K
- Compatible with
- HW4 software > V3.9 (free download at rotronic.com)
Delivery package
- HygroPalm HP-GTS
- Soft case
- Micro-USB cable (computer connection and battery charging)
- Accuracy at 23 ±5 °C: ±2.0 %rh / ±0.3 K
- Dimensions: 408 x 63 x 30 mm
- Functions: Spot measurements
- Time programmable interval logging
- MIN / MAX / AVG
- Power consumption: Integrated battery:
- Rechargeable lithium polymer battery
- 3.7 V
- 1000 mAh
- 48 h with screen off, logging every 30 s
- 10 h with screen always on
- Humidity sensor: Hygromer IN-1
- Display refresh rate: 1 s (typical)
- Memory size: 8 x 8000 data points
- Logging interval: 1 s…24 h
- PC interfaces: Micro-USB port, HW4 compatible V
- Housing: ABS, TPR
- IP protection rating: IP65
- Probe material: Aluminium
- Dimensions: 408 x 63 x 30 mm
- Weight: 225g
