Shinyei - Model OMX-SRM -Handheld Odor Meter

Handheld Odor Meter is highly sensitive.

• Simple and easy to measure odor
• Just turn the switch on
• Data can be stored up to 511 files
• Data logging function with large capacity
• Data can be graphically illustrated by Data filing software

Handheld Odor Meter OMX-SRM is suitable for detecting odor in lavatories, measuring and sensing smell of cigarettes, medicines, foods and odor from production process.

• Display odor strength level in numeric values.
• Select two display mode of High and Low range.
• Display odor tendency in numeric values.
• Check the effect of deodorization before and after deodorizing.
• Detect odor when preparing medicines
• Measure odor level in lavatories before and after cleaning.
• Detect various odors in daily life.
• Monitor odor from production process in food factories.

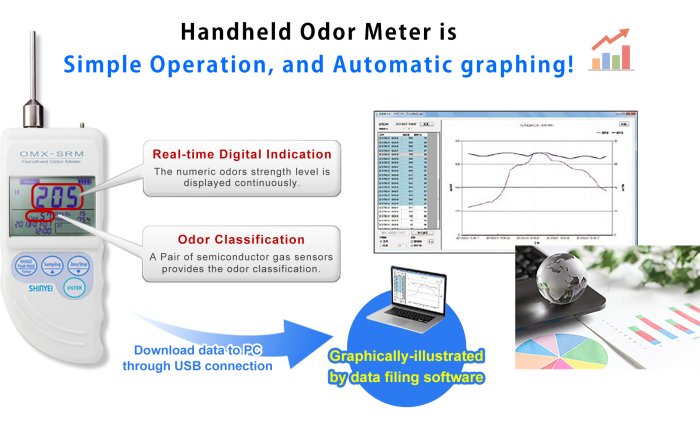

Real-time Digital Indication
The numeric odor strength level is displayed continuously.

High range and Low range function
High range is from 0 to 999, Low rang is from 0.0 to 99.9. Recommend use Low range for measuring low concentration gas, and High range for measuring high concentration gas.

Odor Classification
A pair of semiconductor gas sensors provides the odor classification.

Model Name: OMX-SRM
Detection Method: Two Semiconductor Gas Sensors
Sampling Method: Continuous Sampling with Built-in Air Pump
Object Gas: Ethanol, Acetone, Hydrogen, etc
Odor Strength Level: 0.0 - 999
Classification: Class 0 ~ 90
Power: 4×AASize Alkaline Batteries or AC Adaptor
*Battery life for continuous measurement is approx. 7 hours.
Memory Capacity: Up to 32,732 Data
Memory Partition: Up to 511 Files
Operating Temperature: 0 ~ 40?(32-104F) *No Dew Condensation
Storage Temperature: -10 ~ 50?(14-122F) *No Dew Condensation
Dimensions: W74 X L167.5 X D35mm approx.
Weight: 250g approx. (Without Batteries)
Accessories: USB Cable, Air Purifying Unit, Activated Carbon, 4×AA Size Alkaline Batteries, AC Adaptor
