Shinyei - Model OMX-ADM -Handheld Odor Meter

Handheld Odor Meter is highly sensitive.

• Simple and easy to measure odor
• Just turn the switch on
• Data can be stored up to 511 files
• Data logging function with large capacity
• Data can be graphically illustrated by Data filing software

Handheld Odor Meter OMX-ADM is appropriate for detecting pet odor and putrid smell, checking the effect of deodorization before and after cleaning in hospitals and nursing houses.

• Display odor strength level in numeric values.
• Display odor intensity which is converted into ammonia concentration.
• Detect odor in manufacturing and converting factories.
• Measure pet odor and smell of excrement.
• Check the effect of deodorization before and after cleaning at hospitals and nursing houses.
• Measure garbage odor level in garbage disposal plants, restaurants and fish markets.
• Monitor smell of compost in livestock plants.

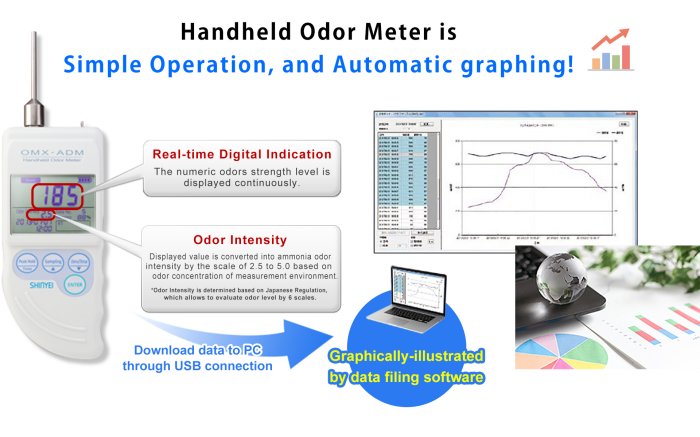

Real-time Digital Indication
The numeric odor strength level is displayed continuously.

Odor Intensity(*)
Displayed value is converted into ammonia odor intensity by the scale of 2.5 to 5.0 based on odor concentration of measurement environment.

Model Name: OMX-ADM
Detection Method: Two Semiconductor Gas Sensors
Sampling Method: Continuous Sampling with Built-in Air Pump
Object Gas: Hydrogen Sulfide, Methyl Mercaptan, Ammonia, etc
Odor Strength Level: 0 - 999
Classification: Odor Intensity 2.5~5.0
Power: 4×AASize Alkaline Batteries or AC Adaptor
*Battery life for continuous measurement is approx. 7 hours.
Memory Capacity: Up to 32,732 Data
Memory Partition: Up to 511 Files
Operating Temperature: 0 ~ 40?(32-104F) *No Dew Condensation
Storage Temperature: -10 ~ 50?(14-122F) *No Dew Condensation
Dimensions: W74 X L167.5 X D35mm approx.
Weight: 250g approx. (Without Batteries)
Accessories: USB Cable, Air Purifying Unit, Activated Carbon, 4×AA Size Alkaline Batteries, AC Adaptor
