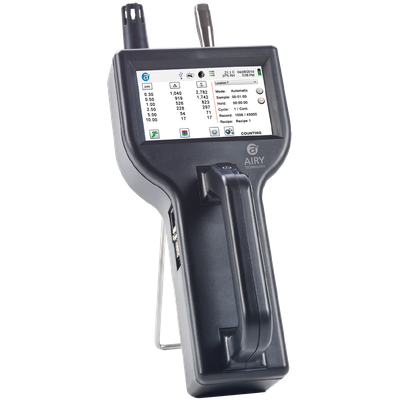

Airy Technology - Model H8506-30 -Handheld Particle Counter

All Airy Technology® counters meet ISO 21501-4 and JIS B9921. The 8506-30 ensures compliance with an on-board pulse height analyzer.

Model H8506-30: Measures 0.5 to 75.0 μm

• 0.1 CFM (2.83 LPM) flow rate
• Long l,ife laser diode technology
• Measures up to 6 channels of simultaneous data
• Approximates mass concentration in μg/m³ with desnity and refractive index corrections
• Integrated handle for one-handed operation
• Large easy-to-use icon driven color touch screen display
• Temperature and relative humidity probe included
• Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
• Annotation function allows user to save 32 character notations to a sample record
• Remote diagnostics allows for remote service investiagtion throught the internet
• Easy configuration and transferable from instrument to instrument
• Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485 or RS232
• Displays user-definable reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
• Internal audible alarm with comprehensive alarm management
• User-selectable channel sizes
• Complies with ISO 21501-4 and JIS B9921
• Easy to clean and wipe down with minimal particle traps
• Seamless integration into a facility monitoring system
• Lightweight high-impact injection molded plastic enclosure
• 2 year limited warranty. Extended warranties available

Model: 8506-30

• Size Range: 0.5 to 75 μm
• Size Channels: Factory calibrated at 0.5, 1.0, 2.5, 5.0, 10.0, 30.0 μm variable binning
• Flow rate: 0.1 CFM (2.83 LPM)
• Concentration Limit: 15,000,000 Particles/ft³ @ 10% coincidence loss
• Counting Efficiency: 50% @ 0.5 μm; 100% for particles >0.75 μm per JIS
• Battery Run Time: >10 hours
• Light Source: Long life laser diode
• Zero Count: <1 count / 60 minutes (<1 particles / 6 ft³). No fault count subtraction.
• Count Modes: Real-Time Meter and graph, cumulative/differential count/m³ and count/ft³, and mass concentration (PM)
• Count Alarms: 1 to 9,999,999 counts
• Calibration: NIST traceable
• Display: 4.3" (10.9 cm) WQVGA (480x272) color touch screen
• Printer: (Optional) external thermal printer available
• Vacuum Source: Internal pump with automatic flow control
• Filtered Exhaust: Internal HEPA filter
• Number of Channels: 6
• Custom Size Channels: Calibration for custom size channels available
• Audible Alarm: Adjustable built-in alarm
• Battery: Removable Li-ion
• Battery Recharge Time: 4 hours within instrument (<2 hours with external battery charger)
• Reports: ISO 14644-1, EU GMP Annex 1, FS 209E
• Recipes: 50 user-configurable recipes
• Communication Modes: Ethernet and USB. (Optional) Wireless 802.11 b/g, RS485 or RS232.
• Environmental Sensor: Includes Temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
• Alarm: Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow
• Standards: ISO 21501-4 and JIS B9921
• Instrument Calibration: Recommended minimum once per year
• External Surface: High impact injection molded plastic
• Dimensions (L x W x H): 5.12” x 4.25” x 12.26” (13.0 cm x 10.8 cm x 31.1 cm) includes handle and does not include probes
• Weight: 2.2 lb (1.0 kg)
• Accessories: Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable
• Optional Accessories: Printed manual, carrying case, spare battery, external battery charger, external printer, isokinetic probes, barb fittings, and IMS-RT monitoring system annotations, and times. Scrollable on screen or printout.
• Buffer Memory: 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout.
• Sample Locations: Up to 1,000 locations 20 characters long
• Sample Time: 1 second to 99 hours
• Power: 110 to 240 VAC 50/60 Hz universal in-line power supply
• Operating Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
• Storage Conditions: 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
• Warranty: 2 year limited warranty. Extended warranties available.
