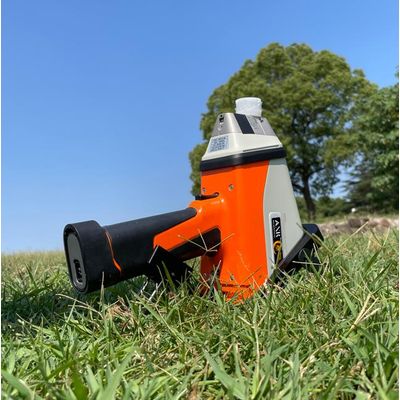

AXR Scientific - Model Terra600 -Handheld Soil Analzyer

Heavy metal pollutants remaining in the soil will still cause harm to the human body after many years. Some production activities in the manufacturing and mining industries, the use of fertilizers and pesticides in the agricultural sector, and improper landfill disposal all have the risk of soil pollution, which may lead to heavy metal pollutants such as cadmium, mercury, lead, and chromium hazards.

Therefore screening and remediation of soil contamination is a major challenge. In situ soils analysis, contaminated soil testing and sediments screen with handheld XRF soil analyzer is an effective solution to address such challenges. The handheld XRF analysis method is an internationally recognized method for soil heavy metal screening.

• Model Terra600/Terra600P/Terra600S
• Excitation Ceramic packaged microfocus X-ray tube, Ag target tube,50kV
• Detector  High performance Si-Pin detector /Optimized SDD detector
• Filter Multi position automatic filter changer
• Window Kapton with anti-puncture window design optional
• Collimator 5mm collimator
• Battery 7.2V Li-ion battery,6800mAh
• Display Capacitive touch color display
• Exceeding Alert When elements concentration exceeds the setting limits, software will alert
• One Touch Operation One touch testing
• Soil Moisture Correction Analysis can automatically correct according to the soil moisture
• Data storage 100000+data storage
• Data transfer WiFi?USB
• Radiation safety Safety guard device, tube shutoff while no sample , Password-protected user security
• Camera(optional) Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
• Environment Temp -10°C~50°C Humidity 0%~80%
• Weight Approx. 1.5kg (3.3lbs) including battery
• Dimensions L x W x H: 220mm*91mm*276mm
• Software language English and other languages
