ALCI - Model I-Washing -Handling Granulation Washing Accessories
Special Custom racks for Drums and lids are designed. I -Control system with the PC touch screen and 21 CFR PART 11 for control and supervision of the process, either automatic or manual. Pump group available for medium or high pressure for the pressurisation of the washing water.This skid is complete with the necessary connections and manifolds to connect to the central utilities and is also complete with detergent vessels which are manaully or automatically dosed into the washing chamber.
- Pre-washing with tap de-calcified water
- Washing with tap water and detergent (if required)
- Rinsing with tap water
- Rinsing with purified water
- Purging of washing lines with compres sed air
- Blowing of the bin with compressed air
- Drying of the bin with special Air Blade system fro enhanced drying of all parts of the Bins.

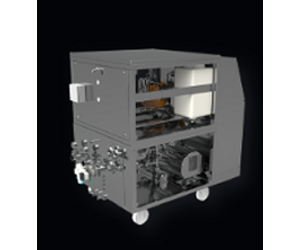

Mobile type pump group is available for easy location and trasnport into teh technical areas.

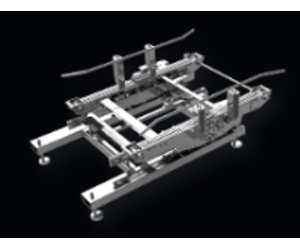

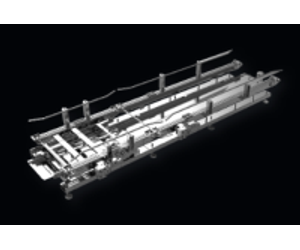

Conveyor systems to allow one or more bins bins to be stored
l-pot control system with the pc touch screen

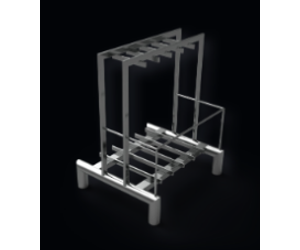

Customised racks depending on the components to be washed

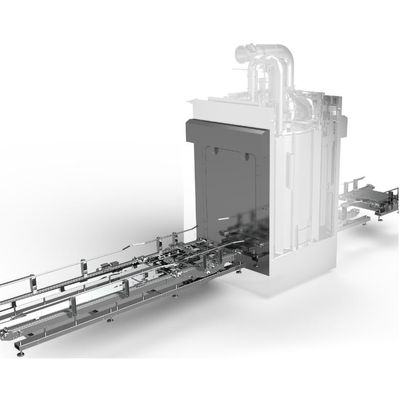

Single Chamber and Double washing systems are available to maximise washing and drying performances. Single and double doors available for the chambers depending on the lay-out allowing separation of the dirty area from clean area.
APPROXIMATE DIMENSIONS
- Platform series 1200 1200 x 1200 x variable height (depending on bin`s height)
- Dimensions platform series 900 900 x 900 x variable height (depending on bin`s height)
UTILITIES
- Working pressure 6 bar
- Tap water instantaneous flow rate 70 l/min
- Max degree 5°F
- Purified water instantaneous flow rate 70 l/min
- Inlet water pressure min 1 bar; max 3 bar
- Compressed air instantaneous flow rate 500 Nl/min
- Compressed air pressure min 6 bar; max 10 bar
- Electrical supply 400 V, 3 phase, 50Hz
- Installed power 15 kW
