HandySCAN 3D - Model Silver Series -Portable Metrology-Grade 3D Laser Scanners
The SILVER Series is part of the HandySCAN 3D™ line-up, the industry standard in portable metrology-grade 3D scanners. This proven and trusted patented technology captures accurate 3D measurements with an impressive level of detail on any surface finish and in any location. The HandySCAN 3D|SILVER Series is optimized to meet the needs of technology innovators and engineering professionals looking for a powerful, accessible, and reliable way to improve product development, shorten time-to-market, and reduce development costs.The HandySCAN 3D | SILVER Series delivers accurate and reliable 3D measurements regardless of the measurement setup quality and the user’s experience level. Featuring dynamic referencing, both the scanner and part can move freely during scanning, and an accurate and high-quality scan can still be obtained.
- Accuracy
Up to 0.030 mm (0.0012 in) - Volumetric accuracy
0.020 ± 0.060 mm/m (0.0008 in ± 0.0007 in/ft) - High repeatability and traceable certificate
- High level of detail
- Best price / performance option
- Designed and manufactured in North America
- More than 5,000 users worldwide
- Supported by a global team of engineers and technicians

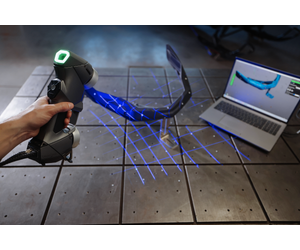

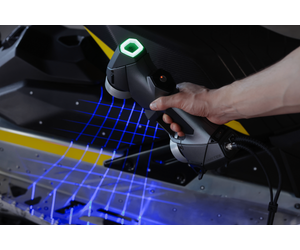

Using triangulation on optical reflectors to determine its relative position to the part, this handheld 3D scanner is a stand-alone device that does not require a tripod or any external tracking device to operate. Compact enough to fit into a small suitcase, it can be brought anywhere and used in any environmental conditions without its performance being affected.
- Lightweight and small
Fits into a suitcase - No rigid setup requiered
The scanner and part can move freely when scanning - On-the-go scanning
Use it in-house or on site - Quick set-up
Up and running in less than 2 minutes
With its user-friendly interface and ergonomic design, this 3D measurement solution is easy to use and has a short learning curve regardless of the user’s experience or expertise level. Its versatility enables users to scan various objects no matter the part size, complexity, material, or color—all with the same device.
- Plug and play

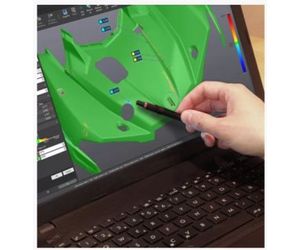

- Simple user interface and real-time visualization
- Masters complex and difficult surfaces
- One device for all shapes and sizes
The HandySCAN 3D technical specifications make it the industrial standard in portable 3D measurement technology.
Featuring accuracy, portability, simplicity, versatility, and a trusted patented technology, the SILVER Series captures highly accurate and repeatable 3D measurements of any complex surface in any location.
Thanks to this 3D scanner’s specifications, it is an ideal tool for technology innovators and engineering professionals looking for a powerful and accessible way to improve product development, shorten time-to-market, and reduce development costs.
Proven and trusted technology that provides accuracy, portability, simplicity, and versatility to your innovative applications.
A brief look at technical specifications of this innovative technology that provides accuracy, simplicity, portability as well as real speed to your applications.
- Accuracy: Up to 0.030 mm (0.0012 in)
- Volumetric accuracy: 0.020 mm + 0.060 mm/m (0.0008 in + 0.0007 in/ft)
- Measurement resolution: 0.030 mm (0.0012 in)
- Measurement rate: 800,000 measurements/s
- Part size range (recommended): 0.05–4 m (0.15–13 ft)
Creaform’s metrology centers are located around the world and offer the following services* in different languages:
- Software and hardware technical support helpline
- 3D scanner basic and advanced repair
- Equipment maintenance, tuning and calibration
- Loaner services
- 3D scanner component replacement
- Resale of parts
- Warranty renewal
* Services may vary depending on each metrology center.
Creaform designs, manufactures and calibrates HandySCAN 3D scanners with the highest quality management system according to internationally recognized standards ISO 9001.
We take pride in owning each step of the process, from beginning to finish. Each scanner is delivered with a personalized certification and fully documented test results..
World Class High Quality & 3D Precision Standard
At Creaform, product and service quality is our top priority. Being pioneers in portable 3D measurement, we are committed to developing innovative solutions that exceed our customer’s requirements. We are invested in continuously improving processes, setting new industry standards and ensuring the full satisfaction of our clientele.
