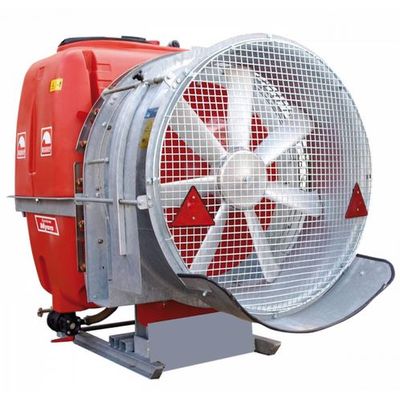

Hans-Wanner - Model D36/400-70 PE -Hitched Sprayer
Hitched sprayer D36/400-70 PE with Axial blower and PE-tank. Stable, hot galvanised profile steel frame construction with optimal centre of gravity and a very close connection.
Tank
400 liter PE-tank with scale and level indicator hose, hydraulic agitator , tank opening with filter basket, rinse tank for system cleaning, hand washing tank drain cock
Pump
Piston-membrane pump APS 71 - 70 l/min at 50 bar
Filter
Suction filter with automatic shut-off valve, central pressure filter with quick cleaning
Control unit
Mechanical operating unit – with part width section control, preasure adjustment and gauge (manometer 0-60bar), via bowden cables from the tractor operated
Blower Drive
two-stage gearbox with zero position
Blower
Axial-blower with an air capacity of approx. 45./60.000 m³/h
Nozzles
Single nozzle with drip stop can be swiveled and suppressible, nozzle inserts: Albuz ATR according to choice
