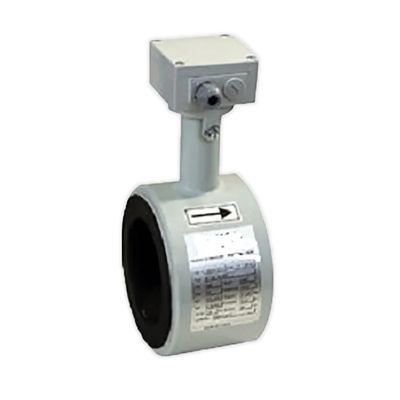

Smart Storm Magflow - Hard Rubber Wafer Meter
Available in remote or integral display options the Smart Storm Flow S3000 series of induction flowmeters are designed for highly reliable flow measurement of conductive liquids. They meet exacting requirements for accuracy and long-term stability and are available with a variety of electrode lining for use in different industries including food, chemicals and waste water. Because induction flow meters have no moving parts and have no hydraulic influence on the pressure conditions within a pipe they are the preferred method for flow measurement in closed pipes.
The Flow S3000 induction flow meter will measure flow in both directions and is available with either integral or remote IP65 rated backlit display. Outputs include pulse, frequency and 4-20mA and serial data transfer is via RS232 or RS485. The Flow S3000 series is an extremely rugged instrument for use in hostile environments and is particularly simple to both install and programme. Coupled with its low maintenance requirement the Flow S3000 is the ideal solution for industrial flow measurement in closed pipes.
- Wide measurement range up to 12m/s
- Integral or remote display
- Simple user-friendly programming
- Temperature operating range up to 150 0C
- Self cleaning electrodes
- Liners-Hard rubber (TG) Soft rubber (MG), Special rubber (NG), PTFE (T)
- IP66 or IP68 Sensor
- Rugged construction
- Low maintenance
- Long life product
- Trade Effluent Flow
- Waste Water Flow
- Chemical Flow
- Drinking Water Flow
- Wide range of Application Industries including Food, Chemical and Pharmaceutical
- Power supply: 85..240VAC, 10..36VDC, 24VAC
- Consumption: 5..8VA
- Analogue output: optional - A5 - 0(4)..20mA (16bit) - active, A6- 4..20mA (16bit) - active, A7 - 4..20mA (16bit) - passive, all galvanically isolated. Modules A6 and A7 are HART compatible (with module H1)
- Binary output: optional - B1 - 0..1kHz passive, B2 - 0..10kHz passive, B3 - 0..12kHz active (5 V),B3 - 0..12kHz active (24 V), B5 - relay - all galvanically isolated
- Interface: optional - C1- RS232, D1 - RS485 (MODBUS), D2 - 0/20mA loop, D3 - M-Bus, G1 - GSM modem, H1 - HART modem (only with module A6 or A7) - all galvanically isolated
- Display: optional - V1 - LCD and keyboard module – 2x16 characters (9,6 mm height)
- Electrode cleaning and pipeline full indication: optional - F1 - electrochemical electrode cleaning module, F2 -
- pipeline full indication module, F3 = F1+F2
- Protection: IP66
- Min conductivity of the liquid: 20μS/cm (for some liquids from 5μS/cm )
