Royal Eijkelkamp -Â Model 04.15.SB -Hard Soils Liner Sampler Set
The liner sampler set for hard soils with screw thread connection allows undisturbed soil samples to be taken in a liner. This is done by applying a stainless steel core sampler with sample tubes and cutting head. In hard soils the sampler tube can be driven into the soil using the shock-absorbing hammer with two nylon heads or the down-the-hole hammer.
- Liner allows easy removal of sample
- Soil fertility and volume weight determinations
- Assessment of (hard) soil structure
- Determination of granular composition
- Soil texture research
We offer two different sets of liner samplers, this is the one suitable for hard soils thanks to its screw thread connection. The liner sampler has a stainless steel sampler body and the set is packed in an aluminium transport case.
If undisturbed samples are required it can be challenging to remove the sample from the sampler tube. This type of corer uses a sample liner tube inside the sample tube which facilitates the removal of the sample from the tube. The sample, still in the liner, is stored in a container which can be sealed for transport to the laboratory. The sample can be viewed directly in the field without touching it.
Please note that the liner will absorb volatiles.
- Soil sampling above and below groundwater table
- Environmental soil research
- Undisturbed sampling
- Soil texture research
- Root zone sampling
Samples are suitable for:
- Soil fertility determinations
- Assessment of soil structure
- Volume weight determinations
- Determination of granular composition
- Soil technical measurements
- Field education

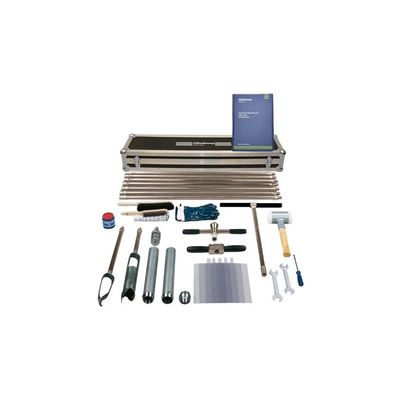

- Hand auger for pre- and clean drilling of the bore hole
- Core sampler with sampler tubes
- Handle with beating head
- Thin walled sample tubes
- Impact-absorbing hammer
- Down-the-hole hammer
- Maintenance equipment
- Aluminium transport case
- Connection: Screw thread
- Maximum root thickness: 10 mm
- Maximum sample depth: 7 m
- Product material: Stainless steel, iron, other material
- Sample diameter: 50 mm
- Sample length: 300 mm
- Sample specification: Undisturbed
- Sample stored in: Tube
- Sample volume: 590 ml
- Package size: 130 x 50 x 72 cm
- Weight: 38 kg
