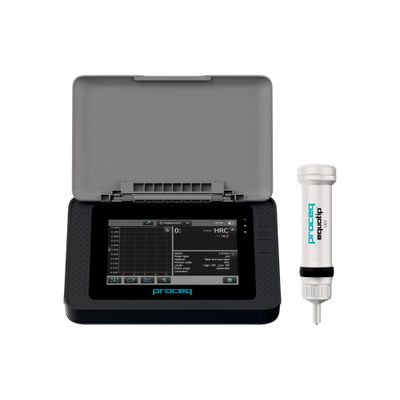

Equotip 550 - Model UCI -Hardness Tester

Adjustable test load and a rugged touchscreen with enhanced software and analysis features

Efficiency
Efficiency to the power of 2 thanks to three loads in one single probe HV1, HV5, and HV10 and possible combination with Portable Rockwell and Leeb in one device.

Productivity
Features with wizards, user guidance, personalised views, and on-screen feedback to reduce measurement inaccuracies that can be caused by the operator.

User Experience
User guidance, smart material, and probe selection wizards, and ready-to-go reports through a powerful built-in reporting feature facilitate even short measurement campaign.

Pc Software: Equotip Link allowing direct reporting and custom reports

Memory: Internal 8 GB flash memory (> 1’000’000 measurements)

Display: 7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor

Native Scale: HV (UCI)

Available Scales: HB, HV, HRA, HRB, HRC, HR15N, HR15T, MPA

Available Probes: UCI (Adjustable load HV1, HV5 and HV10)

Combination With Other Methods: Leeb, Portable Rockwell

Average Roughness Ra (µm / µinch): 12.5 / 500

Minimum Mass (kg / lbs): 0.3 / 0.66

Minimum Thickness (mm / inch): 5 / 0.2

Instrument Firmware
Automatic compensation for impact direction
Personalized user profiles and views
Integration in automated testing environments (incl. remote control)
11 Languages and timezones
Measurement wizards
Custom curve wizard
Combined method wizard
User guidance features
Custom report features
One-step calibration
metric and imperial units support
Profile view
Heat Affected Zone (HAZ) line mapping

Connections: USB host / device and Ethernet

Measuring Range: 20 - 2000 HV

Verification according to: ASTM A1038, DIN 50159, GB/T 34205-2017, custom method, combined method

Protection: IP54, fully rugged with shock-absorbing casing

Custom conversion curves: Yes, 1-point shift, 2-point, polynomial

Coefficient of variation: Significantly lower than the limits set in DIN 50159, ASTM A1038 & GB-T 34205-2017
