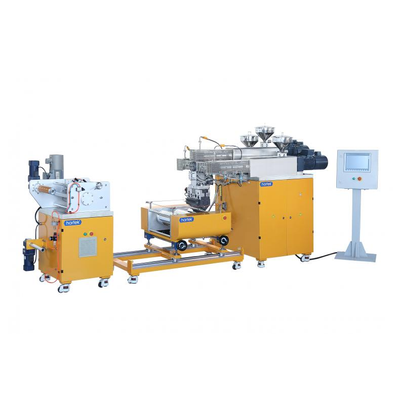

Hartek - Multi Layer Co-Extrusion Line Extruder
The laboratory multi-layer cast film co-extrusion line consists of a drive system, extrusion system, die head, roller system, traction system, winding system, and electrical control system. This line is suitable for conventional plastic extrusion molding. Due to its compactness, intelligent design, and high precision, it is ideal for research institutes.
Most popular related searches
pressure and temperature sensor
digital temperature controller
extrusion system
emergency stop
plastic extrusion
temperature sensor
safety system
PET material
emergency stop device
pressure sensor
- Adopting international brand control motor for the extruder to make the plasticization stable and constant.
- Using brand melt pressure and temperature sensor to ensure high accurate data.
- Adopting Simens PLC control systems and friendly HMI which are highly intelligent and easy to operate
- Formula Storage function.
- Emergency stops and safety protection devices to protect the safety of the operator.
- Material Applicable: PP,PE,PET,compounding materials etc
- Screw Diameter: 25mm
- Screw L/D ratio: 28:01:00
- Motor power: 4kW
- Max. Output: Each extruder 0.5-5kg/h,total 1.5-15kg/h for 3 sets
- Max.rotation speed/set: 120rpm
- Film width: 20mm- 100mm
- Film thickness: 0.1-1mm
- Max. temperature: 350?
- Temperature control accuracy: ±1?
- Working voltage: 380 V±10%, 3 phases, 50 Hz
- Control Method: Siemens PLC control
