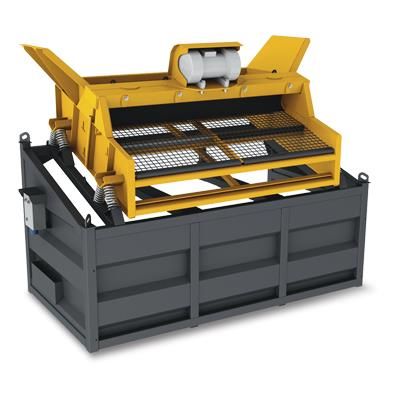

Hartl - Model HSB -Screen Box
HARTL SCREEN BOX HSB features lowest space requirements, robust construction, small transport dimensions and high throughput capacity at low operational costs. This product is used in natural stone processing as well as in the classification and refinement of recycled materials. Beyond that, it is appropriate for the use in road construction, earthwork, forest road construction and excavation. The essential advantage is the compact and robust design ol the Screen Box.
A flexible screening of the materials can be achieved fast and simple by interchangeable screen meshes. The screen box is best built to be feeded direct from a conveyor belt, to separate fines or oversized material and maximising the next efficiency of the next step of material processing. All components and materials are of highest quality.
- L 3000 mm
- W 1520 mm
- H 2330 mm
- W 1250 kg
- Screen area (m2) 3.00 m2
- Number of decks 1 Stk
- Screen width (mm) 1990 mm
- Screen length (mm) 1475 mm
- capacity (m3/h) 70 m3/h
- drive line (kW) 1.1 kW
- connection V/A/Hz/Ph 380-400/2.8/50/3 V/A/Hz/Ph
