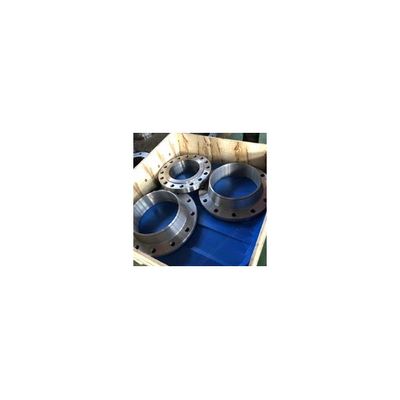

Manifold - Model ASTM B564 UNS N10276 -Hastelloy C276 Flanges

The WNR 2.4819 Slip On Flange has excellent resistance to a broad spectrum of chemical process environments. For example, the DIN 2.4819 Threaded Flange is used in flue gas desulfurization systems, since the alloy demonstrates excellent resistance to pitting and stress related corrosion cracking. Besides these features, the  ASME SB564 Long Weld Neck Flange is known to have characteristics such as resistance to wet chlorine gas, hypochlorite and chlorine dioxide. The ANSI B16.5 Hastelloy C276 Steel Plate Flange is also resistant to seawater and brine solutions. Hence, the Hastelloy C276 Flanges can be used in marine or sea water related applications.

The ??65??? (??760) Socket Weld Flange is forged between a temperature range of  2250 ºF to 1750ºF followed by soaking the alloy at forging temperature for a period of 30 minutes per inch of billet or ingot section thickness. Forging must be started immediately, once the stock as produced by the C276 steel flange weight chart is removed from the reheat furnace. A 25% to 40% reductions will help in retaining as much internal heat as possible. In order to ensure optimum resistance to corrosion, forged parts  of the C-276 alloy should be subsequently annealed.

The ??760 NW 0276 Flange Material is generally supplied in the solution-annealed condition. Solution annealing treatment is carried out at a temperature of 2050ºF or 1120ºC followed by quenching with water  or rapid air cooling. The treatment is performed on the ANSI B16.5 Hastelloy C276 Steel Plate Flange after hot working is known to ensure optimum corrosion resistance. The treatment can also be performed between cold-working operations.

Although the EN - Nimo16cr15w Plate Flanges are considered between a moderate to difficult range to machine, the alloy can be machined using conventional shop practises. Since the Nickel Alloy C276 Forged Flanges have a higher work hardening rate, efficient machining of the alloy requires various points to be taken into consideration. For instance, parameters such as the requirement to use sharp tools, powerful, yet rigid machines that must be preferably carbide-tipped, and heavy, constant feeds.

The ASTM B564 UNS N10276 Hastelloy C276 Flanges are welded in a similar fashion as C-22 alloy. Two of the most commonly used techniques to weld the C-276 alloy are by either Gas-tungsten-arc welding (GTAW) or the shielded-metal-arc welding method (SMAW). It is recommended  by the Alloy C276 Forgings Manufacturer that the C-276 alloy be treated by solution Annealing. It is important that the alloy be kept  in a solution-annealed condition for welding. Most manufacturers also recommend that a filler metal must be used while welding the C-276 alloy in order to achieve optimum results on welding. Submerged-arc-welding is not recommended for the UNS N10276 Pipe Flange because the input of heat is high with this method and slow cooling of the weld. Apart from the fore mentioned technique, Oxyacetylene welding is not recommended, to prevent  carbon pickup in the weld.

• Specifications: Hastelloy C276 Flanges
• Hastelloy C276 Flanges Standards: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
• ASME B16.5 Hastelloy C276 Flange size range: 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
• Hastelloy C276 Flange Standard DIN: 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
• Hastelloy C276 Flange Standard ANSI: Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
• Hastelloy C276 Flange Standard UNI: 6Bar 10Bar 16Bar 25Bar 40Bar
• Hastelloy C276 Flange Standard EN: 6Bar 10Bar 16Bar 25Bar 40Bar
• Hastelloy C276 Flange Standard JIS: 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
• Main Types: Forged / Threaded / Screwed / Plate
• Flange supporting material: Gasket, Ring Joint, Flange Bolts
• Most common types of Hastelloy C276 Flanges:
• Socket Weld Ring Flange (SWRF), Hastelloy C276
• Threaded Ring Flange, Hastelloy C276
• Blind Ring Flange (BLRF), Hastelloy C276
• Weld Neck Ring Flange (WNRF), Hastelloy C276
• Slip-On Ring Flange (SORF), Hastelloy C276
• Ring Type Joint Flange (RTJF), Hastelloy C276
• Lap Joint Ring Flange (LJRF), Hastelloy C276
• Connect Type/ Flange Face Type: Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
• Hastelloy C276 Pipe Flanges Test Certificates: EN 10204/3.1B
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
• Production technique:
• Forged, Heat treated and machined
• Special design:
• As per your drawing
• AS, ANSI, BS, DIN and JIS
• 15 NB (1/2") to 200 NB (8")
• Equal and Reducing Configurations
• Hastelloy C276 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
• Specialized manufacturer of:
• DIN 2566 en 1092 1
• Pn16 Flange
• DIN 2566 pn16
• Rtj Flange
• Hastelloy C276 Sorf Flange
• Hastelloy C276 Table Flanges
• DIN 2566 pn10
• Hastelloy C276 Large Diameter Flange
• Hastelloy C276 Threaded Flanges
• Hastelloy C276 Blind Flanges
• ASTM B564 Plate Flange
• Hastelloy C276 Weld Neck Flanges
• Hastelloy C276 Loose Flanges
• ASTM B564 Orifice Flange
• Hastelloy C276 Slip-On Flanges
• Alloy Lap Joint Flange
• Hastelloy C276 Socketweld Flanges
• Hastelloy C276 AS 4087 Water Flanges
• Test: Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector
• Equipment: Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
• Origin: West Europe /Indian / USA / Japan / Korean
• Hastelloy C276 Flanges Standard:
• ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
• BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
• AS 2129: Table D; Table E; Table H
• B.S: BS4504 , BS3293, BS1560, BS10
• ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
• ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• American standard (ANSI)
• ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
• British standard (BS)
• German (DIN)
• Any other specilised flanges
• The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
• DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
• Key markets and industries for Hastelloy C276 Flanges:
• Nuclear power (mostly seamless).
• Heavy oil refineries.
• Bitumen upgraders.
• Petrochemicals and acids.
• Export to: Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc
• Hastelloy C276 Flanges Application:
• To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
